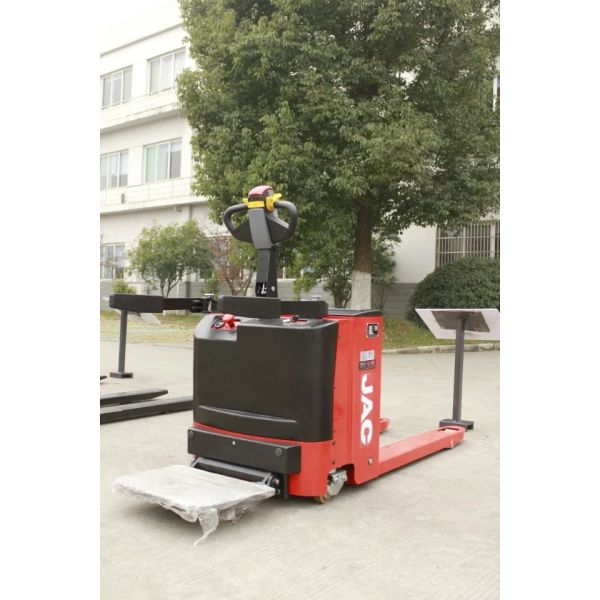

JAC 2T Electric Pallet Jack Stacker Mechanical Steering

Add to Cart

Model	Unit	CBD20
Load capacity	kg	2000
Overall fork width	mm	540/685
Fork length	mm	1150/1220
Single fork width	mm	160
Lowered fork height	mm	85
Max. lifting height	mm	200
Overall length (Pedal down)	mm	1860(2260)
Overall width	mm	776
Overall height	mm	1300
Front wheel size, number		φ80×70,4个
Driving wheel size, number		φ250×80,1个
Balance wheel size, number		φ100×40,2个
Turing radius	mm	1738
Load center distance	mm	600
Lift motor	v/kw	24V/1.5kw
Drive motor	v/kw	24V/1.5kw
Battery voltage	v/Ah	2*12V/100AH
Working time of fully charged battery	h	5
Service weight (without battery)	kg	500(320)

Product Tags:

JAC electric pallet jack stacker
