    SFI Interface 1310nm 10km 25G SFP28 25G Transceiver

    Ask Lasest Price
    Brand Name : YXFiber
    Model Number : YXF-S28-S31L-10D
    Certification : CE RoHS FCC
    Price : $100 / Piece
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100000pcs per month
    Delivery Time : 1~3working days after payment
    • Product Details
    • Company Profile

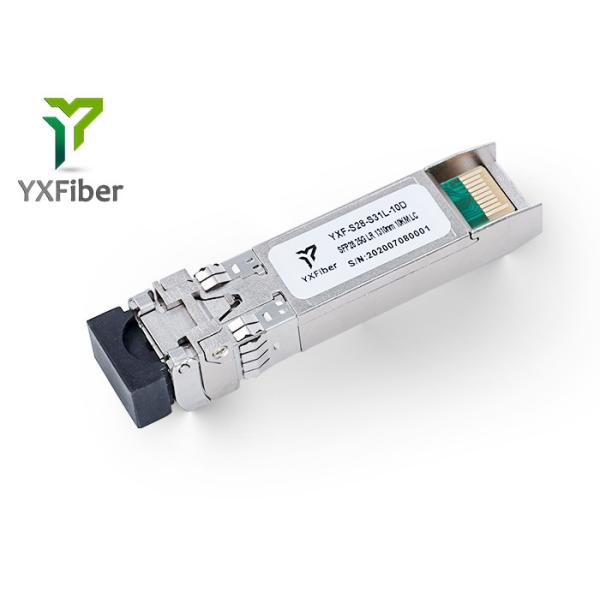

    SFI Interface 1310nm 10km 25G SFP28 25G Transceiver

    25G SFP28 Duplex 1310nm 10km Optical Transceiver LC ConnectorFeatures

    l Up to 10Km transmission on MMF

    l Up to 25Gbps

    l 1310nm DFB laser and PIN receiver

    l SFI electrical interface

    l 2-wire interface for integrated Digital Diagnostic monitoring

    l SFP+ MSA package with duplex LC connector

    l Hot pluggable

    l Very low EMI and excellent ESD protection

    l +3.3V power supply

    l Power consumption less than 1.0W

    l Operating case temperature: 0~+70°C


    Applications

    l High-speed storage area networks

    l Computer cluster cross-connect

    l Custom high-speed data pipes


    Compliance

    l Compliant with IEEE 802.3ae-2002

    l Compliant with MSA SFF-8472

    l Compliant with MSA SFF-8431


    Specifications:


    Technical ParametersDescriptionsTechnical ParametersDescriptions
    Model NumberYXF-S28-S31L-10DInterfaceLC
    Fiber typeSMFLaser/DetectorDBF/PIN
    Form FactorDuplex LCDDMYes
    Data Rate10GbpsOutput Power-6.5~-2dBm
    Wavelength1310nmPower Supply3.3V
    Distance10KmTemperature0~70°C
    Warranty1 YearCertificateCE,ROHS,FCC,ISO9001,SGS
