Rubber tile vulcanizing press is used to press the rubber tiles and rubber mats, it is good for
using the recycling rubber.

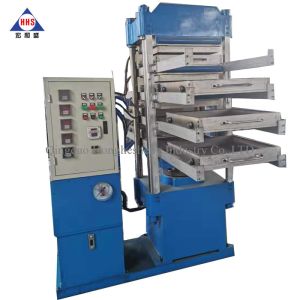

Column Type Big Rubber Tile Plate Press Hydraulic Machine/Rubber
Vulcanizer/Rubber Vulcanizing Machine 50t 550*550*4
1 Technical Parameters
| S.no | Model | XLB-D550×550×4/0.5MN | XLB-D650×650×2/0.5MN |
| 1 | Nominal clamping force (MN) | 0.5 | 0.5 |
| 2 | Heating platen size(mm) | 550×550 | 650×650 |
| 3 | Plate clearance (mm) | 150 | 150 |
| 4 | Working layers | 4 | 2 |
| 5 | Piston stroke (mm) | 400 | 400 |
| 6 | Plate unit area pressure (Mpa) | 1.65 | 3.20 |
| 7 | Overall dimension (mm) | 2200×900×2200 | 2200×1200×2400 |
| 8 | Weight (kg) | 3600 | 5000 |
2 As a leading rubber machine manufacturer and exporter of China,
we can supply professional quality rubber tile vulcanizer machine
to you with competitive price and give guarantee to the quality. We
also can produce various non-standard model press according to your
detailed requirement.
3 Features:
Manual push-pull mold
High output and efficiency
Easy and safe operating
4 The Detailed Parameter:
1. we usually design as clients' products and details request. our
machine is 4 working layers, 1 hour can made 8 pcs rubber floor. We
can also according your needs. and decide the working layers.
2.the machine is matched with manual push-out device .
3. we also can provide the different size of the molds, from 20mm
to 75mm thickness.
4. rubber mixer can also provided, if needed.
5. The press with 12 pcs molds and rubber mixer is only 8m3 of the
flooring area, it can be LCL for loading, So the sea freight is
very cheap.
6. We also can according to the customers' requirement, and design
the non-standard type of rubber tile vulcanizing machine.

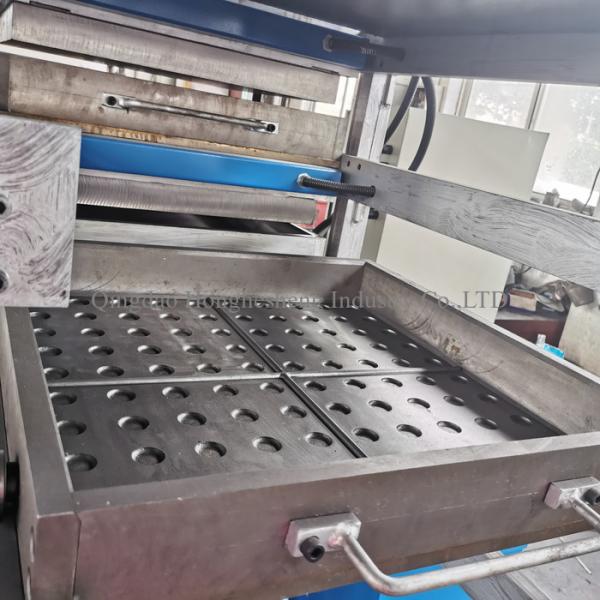

4 detailed pictures
