2021 Hot Computer Electronic JLH Tensile Testing Machine For
Calibration
Description:
Materials Strength Tester/computer universal test machine have a
intelligence computer test system for universal testing.the
operator will be get the date from the pc window like curve
process, multi-sensor support, image interface, flexible data
process and powerful system function.
This universal test machine uses the motor to drive screw to move
fixtures. Fix sample between upper and lower fixture and pull
sample by the upper fixture upward with specified speed. The load
cell connecting with upper fixture will sense the force and then
convert it into voltage sign to the display screen. Force value
will be displayed automatically on the screen.
General test Project:
Tensile stress, tensile strength, tearing strength, breaking
elongation, fixed extension stress, constant stress elongation,
constant stress value, tearing strength, arbitrary point force
value, elongation at any point, pulling force, adhesion and peak
value, pressure test, shear stripping force test, bending test,
pulling force puncture test.
Special test items:
1. The coefficient of elasticity is the definition of elastic young
modulus, 2. Ratio limit, 3 elastic limit, 4 elastic deformation, 5
permanent deformation, 6 yield point, 7 yield strength, 8. Spring k
Value
Design Standard:
ASTM,JIS,CE, ISO,EN,BS EN,SAE,FTM...etc.
Standars Specification:
| Item | Description |
| Frame capacity | 100kg-5T( can be optional ) |
| Load cell brand | Germany brand load cell for high accuracy 5000kg (1000,2000kg are optional) |
| Load accuracy | 0.5% F.S |
| Control system | PC with windows 7 system |
| Motor | Panasonic servo motor w/AC variable speed drive system, high-precision mechanical ball screw rod |
| Force reading | kgf, Ibf, N, KN, T etc |
| Vertical test space | 1000mm including fixture |
| Horizontal test space | ≤420mm |
| Test speed | 0.1~300mm/min (adjustable) |
| Software | TM 2101 |
| Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
| Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm,
N/mm2) etc… |
| Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |

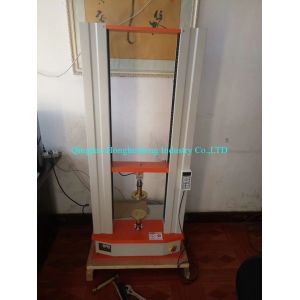

Detailed pictures
