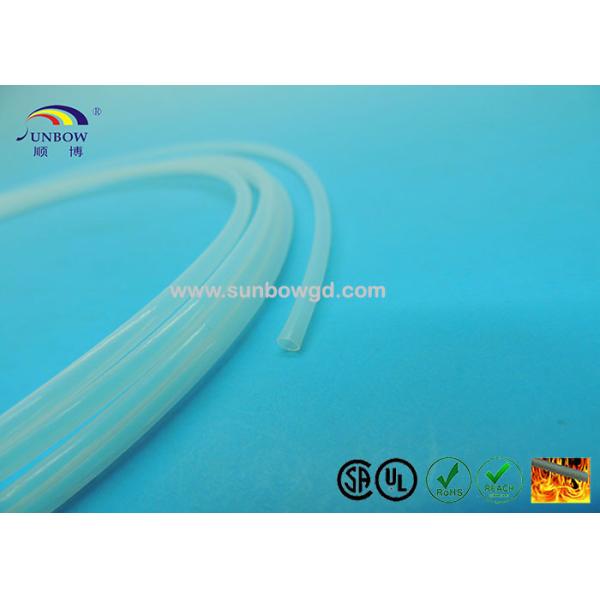

    Insualtion ptfe extruded tubing 3d printer abrasion resistance ptfe tube

    Ask Lasest Price
    Brand Name : SUNBOW
    Model Number : SB-PTFE
    Certification : ROHS, REACH, UL
    Price : USD$0.05~$3.15/M
    Supply Ability : 30,000M per week
    Delivery Time : 5-15days
    • Product Details
    • Company Profile

    Insualtion ptfe extruded tubing 3d printer abrasion resistance ptfe tube

    Insualtion ptfe extruded tubing 3d printer/abrasion resistance ptfe tube

    STRUCTURE&USAGE
    It has excellent high temperature resistance, high voltage resistance, abrasion resistance and self-lubricating properties. It widely used in mechanical industries, electronic and electric products, motor vehicle, aerospace, chemical industry, communications etc.

    Characteristics:
    1.Operating Temperature: -80C~260C;
    2. Excellent anti-corrosion (anti-acid/alkaline/chemical/oil);
    3. High voltage resistance (45kv/mm)

    SPECIFICATION

    ItemStandardItemStandard
    Relative Density2.14~2.20Melting Point (0C)327
    Tensile Strength (MPa)≥25Operating Temperature (0C)-80~260
    Stretch Yield Strength (MPa)≥11Oxygen index(%)>90
    Elongation (%)≥300Water Absorption (%)<0.01
    Arc Resistance>300Linear ExpansionCoefficient(×105/0C)21~1000C10
    Shore Hardness (D)59~63breakdown strength (kv/mm)≥45
    volume resistance (Ω.cm)1×1016

    I.D.(mm)O.D.(mm)(s)O.D.(mm)(T)O.D.(mm)(L)Standard Package
    (meter/roll)
    0.30±0.100.80±0.100.70±0.100.64±0.10305
    0.38±0.100.88±0.100.78±0.100.72±0.10305
    0.46±0.100.96±0.100.86±0.100.80±0.10305
    0.56±0.101.16±0.101.06±0.100.90±0.10305
    0.66±0.101.26±0.101.16±0.101.00±0.10305
    0.71±0.101.31±0.101.21±0.101.05±0.10305
    0.81±0.101.41±0.101.31±0.101.15±0.10305
    0.86±0.101.66±0.101.46±0.101.20±0.10305
    0.96±0.201.76±0.201.56±0.201.30±0.20200
    1.07±0.201.87±0.201.67±0.201.41±0.20200
