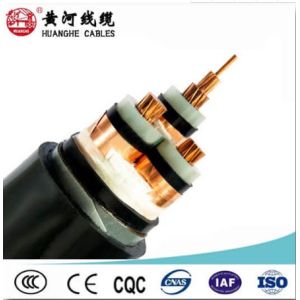

Low Voltage Armoured Electrical Cable STA SWA AWA Polyvinyl Chloride PP Tape

Low Voltage Armoured Electrical Cable STA SWA AWA Polyvinyl Chloride PP Tape

Type: Armoured Electric Cable

Rated Voltage: 0.6/1kV~26/35kV

Conductor: Hard drawn aluminum or annealed copper

Insulation: XLPE or PVC

Filler: Polypropylene tape (pp tape)

Wrap Tape: Non-woven fabric or PP wrapping tape

Armour: Steel tape armoured or steel wire armoured or aluminum wire armoured

Outer Sheath: Polyvinyl chloride (PVC)

Standards: CCC/UL/CE Certificate

0.6/1kV PVC Insulated Armoured Electric Cable
PVC Armoured Cable Types Description Cores Nomi Section Area (mm2)
Cu/PVC/STA/PVC copper core, pvc insulated, steel tape armoured, pvc sheathed, electric cable 1 core2 core3 core4 core5 core3+1 core3+2 core4+1 core 1.5, 2.5,4, 6,10, 25,35, 50,70, 95,120, 150,185, 240,300, 400
Al/PVC/STA/PVC aluminum core, pvc insulated, steel tape armoured, pvc sheathed, electric cable
Cu/PVC/SWA/PVC copper core, pvc insulated, steel wire armoured, pvc sheathed, electric cable
Al/PVC/STA/PVC aluminum core, pvc insulated, steel wire armoured, pvc sheathed, electric cable

0.6/1kV XLPE Insulated Armoured Electric Cable
XLPE Armoured Cable Types Description Cores Nomi Section Area (mm2)
Cu/XLPE/STA/PVC copper core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable 1 core2 core3 core4 core5 core3+1 core3+2 core4+1 core 1.5, 2.5,4, 6,10, 25,35, 50,70, 95,120, 150,185, 240,300, 400
Al/XLPE/STA/PVC aluminum core, xlpe insulated, steel tape armoured, pvc sheathed, electric cable
Cu/XLPE/SWA/PVC copper core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable
Al/XLPE/STA/PVC aluminum core, xlpe insulated, steel wire armoured, pvc sheathed, electric cable

Huanghe Cables founded in 1980s ,constantly awarded as national quality reliable factory from 1980-1990 restrued into as joint-stock in 1996 .

Awarded as china famous brand and AAA enterprise from 1996-2006 38 sales branches in henan province in 2012 .

Successiverly cooperated with china Raily way group ,Electrical power bureau from 2012-2015 with every years total annual sales 15000000USD.

Subsidiary of Huanghe Cabels Henan Interbath Cable Co.,Ltd founded in 2016 focusing on international markets .successiverly cooperated with BPDB,DPDC of Bangladesh ,BPC of Botswana ,Singapore grid and so on .

Huanghe Cables Group (Henan Interbath Cable ) always on the road to forwarding .

Going on ........
