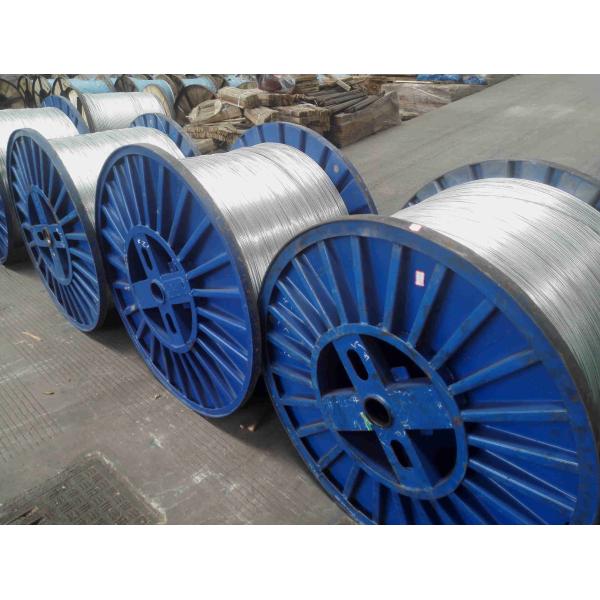

ASTM B232 Bare Conductor Bare ACSR AAC AAAC ACC , Overhead
Conductors
BARE CONDUCTOR TYPE
| Bare Conductor Types | Description | Nominal Section-area (mm2) |
| ACC | All Copper Conductor | 16, 25, 35, 50, 70, 95, 120, 150, 185, 210, 240, 300, 400, 500, 630, 800 |
| AAC | All Aluminum Conductor |
| AAAC | All Aluminum Alloy Conductor |
| ACSR | Aluminum Conductor Steel Reinforced |
BARE CONDUCTOR FEATURE
1. High tensile strength
2. Long life
3. Light in weight
4. Suitable for high as well as extra high overhead voltage lines
BARE CONDUCTOR STANDARD
ASTM B232, IEC61089, BS215, DIN48204, BS EN50182, GB/T 1179-2008
etc.
BARE CONDUCTOR DESCRIPTION
AAAC, ACSR form part of the family of Overhead Conductors,
Transmission Conductors and Power Distribution Conductors. These
cables are formally known as All Aluminium Conductor (AAC), All
Aluminium Alloy Conductor (AAAC) and Aluminium Conductor Steel
Reinforced (ACSR). These overhead conductors are used as power
transmission and distribution lines. All aluminium conductors are
made up of one or more strands of aluminium wire depending on the
specific application.
AAC–ASTM-B ALL ALUMINUM CONDUCTOR
AAC conductor is also known as aluminium stranded conductor. It is
manufactured from electrolytic ally refined aluminium, witha
minimum purity of 99.7%. AAC is used mainly in urban areas where
the spacing is short and the supports are close. All aluminium
conductors are made up of one or more strands of aluminium wire
depending on the end usage. AAC is also used extensively in coastal
regions because it has a high degree of corrosion resistance.
AAAC-ASTM-B ALL ALUMINUM ALLOY CONDUCTOR
AAAC are used as a bare conductor cable on aerial circuits that
require a larger mechanical resistance than the AAC and a better
corrosion resistance than the ACSR. The sag characteristics and the
strength-to-weight ratio of the AAAC conductor cable is better than
both AAC and ACSR.
ACSR-ASTM-B ALUMINUM CONDUCTOR STEEL REINFORCED
ACSR is available in a range of steel contents ranging from 6% to
40% for additional strength. The higher strength ACSR conductors
are commonly used for river crossings, overhead earth wires, and
installations involving extra-long spans. The ACSR conductor can,
against any given resistance, be manufactured to different tensile
strengths, so a high tensile strength combined with its lightweight
properties means it can cover longer distances with fewer supports.
Due to the greater diameter of the ACSR conductor, a much higher
corona limit can be obtained which is advantageous on high and
extra high voltage overhead lines.
Aluminium conductors are known by codenames, differing depending on
dimensions. Bare conductor sizes are available as AWG in cmill,
kcmill and MCM.
We could producing according to the customers' requirements.
Welcome your request for any quotations.
ALUMINUM CONDUCTOR STEEL REINFORCED (ACSR) BARE CONDUCTOR DATA
| Code name | Nominal Area | Stranding&Wire Diameter | Dia. | Sectional Area | Wight | Breaking Load | DC Re. at 20℃ | Current Rating |
| Al. | St. | Al. | St. | Total |
| mm2 | No. | mm | No. | mm | mm | mm2 | mm2 | mm2 | Kg/Km | kN | Ω/Km | A |
| Gopher | 25 | 6 | 2.36 | 1 | 2.36 | 7.08 | 26.2 | 4.37 | 26.2 | 72.1 | 9.61 | 1.093 | 126 |
| Weasel | 30 | 6 | 2.59 | 1 | 2.59 | 7.77 | 31.6 | 5.3 | 36.9 | 128 | 11.45 | 0.9077 | 134 |
| Ferret | 40 | 6 | 3 | 1 | 3 | 9 | 42.4 | 7.1 | 49.5 | 171.7 | 15.2 | 0.6766 | 161 |
| Rabbit | 50 | 6 | 3.35 | 1 | 3.35 | 10.05 | 52.9 | 8.8 | 61.7 | 214.1 | 18.35 | 0.5426 | 185 |
| Horse | 70 | 12 | 2.79 | 7 | 2.79 | 13.95 | 73.4 | 42.8 | 116.2 | 538.1 | 61.2 | 0.3936 | 268 |
| Dog | 100 | 6 | 4.72 | 7 | 1.57 | 14.15 | 105 | 13.6 | 118.5 | 394.7 | 32.7 | 0.2733 | 278 |
| Wolf | 150 | 30 | 2.59 | 7 | 2.59 | 18.13 | 158.1 | 36.9 | 194.9 | 725.9 | 69.2 | 0.1828 | 355 |
| Dingo | 150 | 18 | 3.35 | 1 | 3.35 | 16.75 | 158.7 | 8.8 | 167.5 | 507.4 | 35.7 | 0.1815 | 349 |
| Lynx | 175 | 30 | 2.79 | 7 | 2.79 | 19.53 | 183.4 | 42.8 | 226.2 | 842.4 | 79.8 | 0.1576 | 386 |
| Caracal | 175 | 18 | 3.61 | 1 | 3.61 | 18.05 | 184.2 | 10.2 | 194.5 | 589.2 | 41.1 | 0.1563 | 383 |
| Panther | 200 | 30 | 3 | 7 | 3 | 21 | 212.1 | 49.5 | 261.5 | 974 | 92.25 | 0.1363 | 421 |
| Jaguar | 200 | 18 | 3.86 | 1 | 3.86 | 19.3 | 210.6 | 11.7 | 222.3 | 673.6 | 46.55 | 0.1367 | 415 |
| Zebra | 400 | 54 | 3.18 | 7 | 3.18 | 28.62 | 428.9 | 55.6 | 484.5 | 1621.3 | 131.9 | 0.06741 | 635 |
