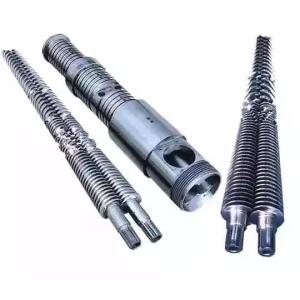

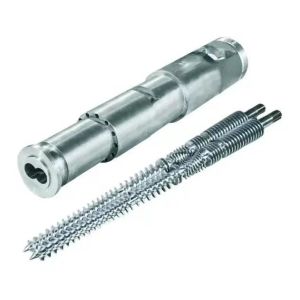

    Bimetallic Screw And Barrel For Plastic Extruder Machines

    Ask Lasest Price
    Brand Name : BLM-IV-1
    Price : Negotiation
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 1000 per Month
    Delivery Time : 25-30 days subject to the clients' requirement and quantity
    • Product Details
    • Company Profile

    Bimetallic Screw And Barrel For Plastic Extruder Machines

    bimetallic screw and barrel for plastic extruder machine


    Main Charactors:

    Using machining center finishing, reasonable processing technology, advanced testing equipment, to ensure that the processing accuracy of each product.
    Twin-screw extruder screw element:
    - convenient interchangeability by agile combination.
    - fulfill efficient self-cleaning, transmission, compounding, pressure-forming and etc.
    - made of high speed tool steel W6Mo5Cr4V2, or anti-corrosion steel 38CrMoAlA by speed treatment.
    The flexible modular principle is realized with screw barrel sections from the wide range of different designs possible. Fast, intensive and uniform heating of the screw barrel section is ensured by electrical heaters. The barrel sections are cooled with water by means of an internal bore system with bores arranged close to the inside barrel wall.


    Code No
    Description
    Materials
    Alloy Thickness
    Application
    BLM-B-01
    Barrel
    38CrMoAl+Alloy
    2mm
    Extruder
    BLM-B-02
    Barrel
    45 Steel +Alloy
    3mm
    Extruder
    BLM-B-03
    Barrel
    316Steel+Alloy
    5-20mm
    Extuder
    BLM-B-04
    Barrel
    304Steel+Alloy
    5-20mm
    Extruder

    No
    Size W*H*L (mm)
    Hole Diameter Φ (mm)
    Center Distance D(mm)
    BLM-001
    115*105*132
    Φ23
    18.4
    BLM-002
    135*115*120
    Φ30.6
    26
    BLM-003
    190*150*190
    Φ51
    42
    BLM-004
    210*160*220
    Φ53.3
    48
    BLM-005
    210*170*240
    Φ60
    52
    BLM-006
    310*240*360
    Φ92
    78
    BLM-007
    330*240*420
    Φ100
    91.5
    BLM-008
    370*300*410
    Φ134
    110
    Note:We can customize all sizes according to your drawings.
