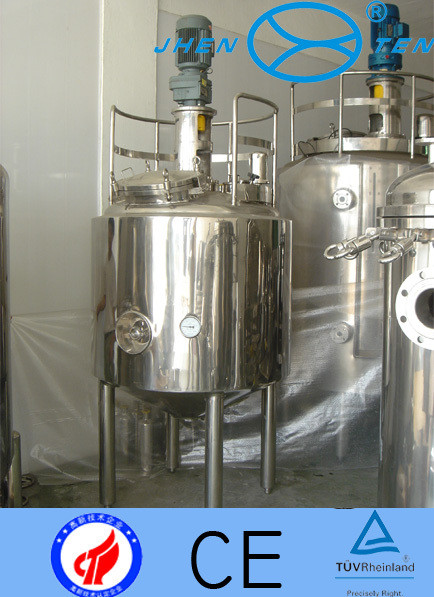

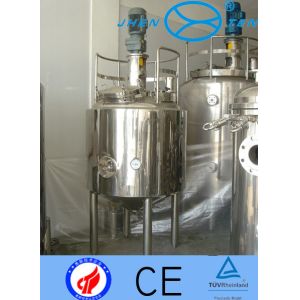

sanitary polished surface stainless steel mixing tank sealed double
layer
Specifications
This unit is available for manufacturing liquid products (such as
detergent, shampoo, shower gel, etc.) it integrates mixing,
homogenizing, heating, cooling, pump discharge finished products
and defoaming (optional) functions. It is the ideal equipment for
liquid products in domestic and international factories.
Main technologies
1. Capacity:100L,200L,300L,500L,600L,1000L~5000L and more size
.Special tank can be made customered order.
2. Heating form: it adopts heating tubes, inserting into the
jacket, to achieve uniform heating, heat transfer oil or water is
injected into the jacket as the heating media,thus,the thermal
energy is generated to heat the material in the tank
3. Material heating temperature:≤100°c,material heating
time:30min-90min(according to the production requirements)
4. Temperature control: it adopts thermocouple and temperature
controller to measure and control the temperature, it also can
adjust the material temperature up and down.
5. Tank:interal surface are treated by polishing, roughness
Ra<=0.4Pm.
6. Top cover: With two easy-open removablecover,convenient to
wash,interal surface are treated by polishing, roughness
Ra<=0.4Pm.
7. Bottom tank structure angle is formed by metal spinning, no dead
space remains after welding,polishing,and no material leaves after
releases.
8. Jacket type:fully jacketed, used for injecting into heat
transfer oil or water, to achieve the purpose of best warming up
and cooling down during working time.
9. Heat insulating material: it adopts filling pearl cotton, rock
wool or polyurethane foaming to keep the temperature range from
outside, thus, to achieve the heat insulation and heat preservation
purpose.
10. The shell surface treatment method: mirror polish ,2B primary
colors inferior smooth or 2 B grinding surface inferior smooth
processing
11. Agitator: coping centre agitating, lapped joint is adopts to
connect speed reducer output shaft and mixing paddle
shaft,thus,it's easy to wash.
12. Mixing RPM:15-120r/min
13. Agitator type: gate type, anchor type, paddle type, turbine
type (according to the production requirements).
14. Device configuration: electric control box, temperature
controller, liquid material import&export,oil spill hole,etc.
15. Material: inner tank is stainless steel 304 or
316L,Jacket:Q235-B or SUS304,outer protection shells:SUS304.
16. Flanging process arc transition is adopted for each
import-export pipe orifice and inner tank welding, which makes our
products easy to wash.
Advantage for liquid making machine
1. Completely Meet GMP
2. Using Japan NSK bearings
3. Material contact part all use SUS316L
4. Safety protecting functions, make the produce saver
5. Homogenizer's design mainly stem from Japanese technology.
6. Siemens Inverter, power-saving, machine-protect, keeping the
machine working stably
Stirring scrap and middle stirring rotating the opposite direction
make the mixing more equally
7. Burgmamn mechanical seal, seal good, long working life, keep the
homogenizer work 24 hours continually.
8. Slow stirring axle adopts 2 sets of mechanical seal and 2 sets
frame oil seal, make the seal saver.
9. Install a fall buffer unit on the hydro-cylinder in the hydraulic
system; keep the cover up and down stable
Application
It is suitable for production of ointment and cream products in
cosmetic and pharmaceutical plants
The emulsifying effect is more prominent for materials of high base
viscosity and high solid contet.
♣ Daily chemical and cosmetics industry
Baby cream, shaving cream, cream shampoo, toothpaste, cold cream,
sunscreen cream, face cleanser, moisture cream, detergent, shampoo…
♣ Pharmacy industry
Emulsion, emulsifier, ointment, syrup….
♣ Food industry
Sauce, cheese, oral syrup, nutrient solution, infant food,
chocolate, saccharine…..
♣ Chemical industry
Latex, saponification, paint, resin, adhesives, lubricating agent
