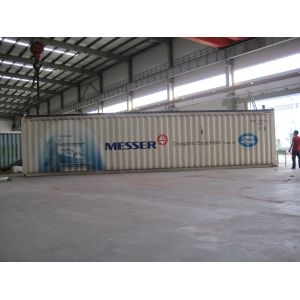

2500 Nm3 / h / 125L/h Liquid Nitrogen Generator 3ppm O2 Purity

Liquid nitrogen generator 2500Nm³/h / 125L/h KDN-2200/125Y

Specifications:

The standard products for the Nitrogen Plant KDN 2000~2500

Typical Product: KDN-2500/125Y Liquid nitrogen generator

Output, purity and pressure

Description:

The plant’s a low pressure process of employing molecular sieve to adsorb, employing expander to refrigerate, and pressure nitrogen going out of column directly, by which air separated to produce high purity nitrogen.

The feed air is primarily process by compressor, pre-cooler and molecular sieve, then goes into fractionating column, and exchange heat with refluxed waste nitrogen and product nitrogen through main heat exchanger; after being cooled, it goes into the bottom of fractionating column to be separated into product nitrogen gas and oxygen-rich liquid air through fractionation. The oxygen-rich liquid air is subcooled and throttled to condenser evaporator to exchange heat with nitrogen gas. The nitrogen is liquefied and as the refluxed liquid of fractionating column.

The waste nitrogen extracted from the top of condenser evaporator is rewarmed through subcooler and main heat exchanger, and then it is insulation expanded to 0.038MPa by expander for compensating cold capacity to the plant. The product nitrogen gas extracted from the top of fractionating column is rewarmed by main heat exchanger and sent to the pipelines at the pressure of 0.65MPa.

The liquid nitrogen product goes back to the lower column from the condenser evaporator, and then it is extracted from the pipes of lower column to be sent to the storage tank.

Applications:

• Carrier Gas
• Inert Gas
• Glass
• Nitrogen Purging
• Pressurize Test
• Process Gas

Competitive Advantage:

1. Quick delivery

2. No loss, high returns

3. High market share

4. Long service life

5. Engineers available to service machinery overseas

6. Economization of energy

       Hangyang Cryogenic Liquefaction Equipment Co., Ltd. is one of the holding subsidiaries of Hangyang Co.,Ltd.(stock code:002430), it is organized on the basis of the original Small Scale of ASU Company of Hangzhou Hangyang Co,.Ltd. It is the major engineering, research and manufacturing base for small size of ASU and liquefaction plants in China, It is located in Hangyang Manufacturing Base in Lin'an Economic Development Zone, the address of sales office is No. 592, Zhongshan North Road, Hangzhou. It undertakes engineering consulting, design and manufacture, assembled construction design, installation and commissioning and supply of parts for medium and small size of ASU with its professional quality. It is the main base of design, research and manufacture for the domestic medium and small size of oxygen/nitrogen generating plants, liquid oxygen/liquid nitrogen plants, oxygen/nitrogen liquefiers, high-purity nitrogen generators, vacuum pipes and Pressure Swing Adsorption (PSA) for oxygen/nitrogen generating, etc.; Meanwhile, it is also the professional manufacturer for integrated assembly or skid type of medium size of ASU for leaving workshop by Hangyang, its abilities of design and manufacture for integrated assembly of medium size of ASU reach the leading domestic level. Our company has the independent import and export trade qualification.

      Our company possesses professional technical personnel teams of design and EPC engineering of ASU and also possesses design ability of product such as independent process calculation, project design, unit design, project EPC. The manufacture base of our company was relocated to new site in 2009. Recently, the floor area is 40.34 acres. Combinating with relocation, the imported and set-up professional manufacture production tools, moulds and equipment forms the manufacture ability for manufacture ASU whose capacity is below 30,000Nm3/h. Our company carries out the international administration concept and obtains authentication certificates of management system such as ISO9001, ISO14001 and OHSAS18001 of DET NORSKE VERITAS. Meanwhile, we obtains manufacturing license for pressure vessels manufacture D1 and D2, Zhejiang new high-tech enterprise certificate and small and medium-sized technology-based enterprise certificate, our company possesses impeccably professional manufacturing credentials for medium and small size of ASU.

     Our company sets product research, manufacture, marketing and service in one to elaborately provide general customers superiorly coordinated service on the basis of decades experience in design and manufacture and administration concept by Hangyang. Products involve aspects such as metallurgy, petrifaction, electron, machinery, building materials and aerospace. Our products are not only sold well throughout China, but also sold to the West, and our company becomes the designated supplier for several well-known gases investment companies abroad. In the cooperation with transnational large gases companies, our company absorbs and imports the advanced design concept, strict administration program, exquisite manufacturing technology so as to lead our company to develop in the direction of diversification, exquisite products and large-scale. Hangzhou Hangyang Cryogenic Liquefaction Engineering Co., Ltd. undertakes EPC works of ASU under our company.
