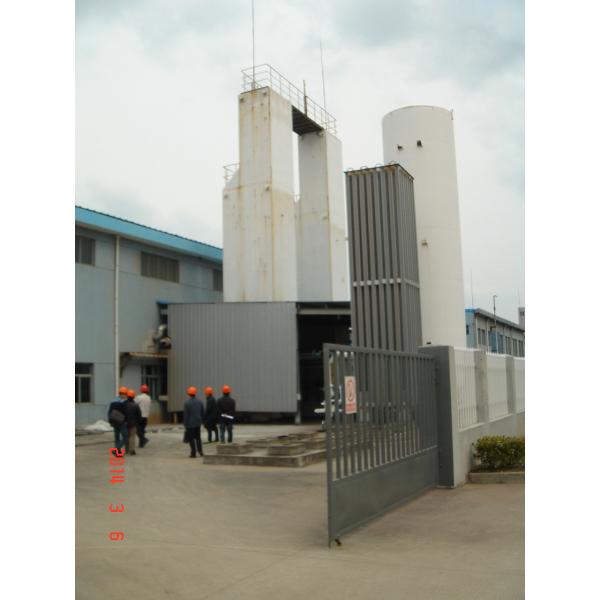

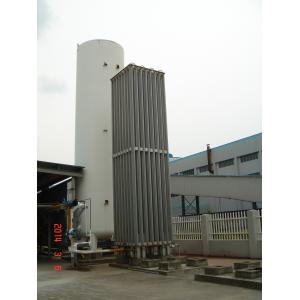

High Purity Carrier Gas Nitrogen Generation Plant 800 Nm3 / h

Nitrogen Generation Plant 800 Nm³/h KDN-800Y Backflow N2 High Purity Carrier Gas

Specifications:

The Standard Products for Nitrogen Generator KDN 800~1000 Nm3/h Series

Typical Product:800 Nm3/h KDN-800Y Backflow Nitrogen Generation Plant

Output, purity and pressure

Description:

The process of the plant is that the air is purified by molecular sieve, turbo expander is provided with braking effected by fan and nitrogen is produced by single column with expansion achieved through backflow. The process flow diagram as follows:

Applications:

1. Nitrogen Purging & Pressurize Test

2. Generate Vegetable Maturity Gas

3. Blanketing Gas

4. Balance Gas

5. Standard Gas

6. Food and beverage

7. Depth refrigerant

8. Automotive and transportation equipment

9. Medical Gas

Competitive Advantage:

1. The advanced software introduced from abroad for calculation of performance is used to analyze the optimization of process adopted by this plant. The more advanced program developed by Hangyang itself on the basis of rectification design module from Linde for rectification calculation and verified in many air separation plants is applied to ensure the price proportion of optimum technical/economical figures to fine performance.

2. The plate and fin heat exchangers are brazed by large size vacuum brazing furnace which is the first one in China imported from SW Corp. in USA. The cores vacuum brazed by this furnace are of good quality and in long service life. Hangyang has developed new and efficient fin types in recent years to get the heat exchangers more efficient.

3. The stress is analyzed and strength is calculated in details for the cold box in fractionating column system in accordance with the client’s local meteorological and geological conditions to ensure the safety of cold box. The stress is analyzed for the main pipelines located in cold box. The aluminum alloy material with high strength is used to fabricate these pipelines to keep them non-deformable. The 3 kinds of supports in cold box are made of stainless steel such that the strength at low temperature can be ensured and the loss in heat conduction is reduced.

4. Low energy power consumption.

       Hangyang Cryogenic Liquefaction Equipment Co., Ltd. is one of the holding subsidiaries of Hangyang Co.,Ltd.(stock code:002430), it is organized on the basis of the original Small Scale of ASU Company of Hangzhou Hangyang Co,.Ltd. It is the major engineering, research and manufacturing base for small size of ASU and liquefaction plants in China, It is located in Hangyang Manufacturing Base in Lin'an Economic Development Zone, the address of sales office is No. 592, Zhongshan North Road, Hangzhou. It undertakes engineering consulting, design and manufacture, assembled construction design, installation and commissioning and supply of parts for medium and small size of ASU with its professional quality. It is the main base of design, research and manufacture for the domestic medium and small size of oxygen/nitrogen generating plants, liquid oxygen/liquid nitrogen plants, oxygen/nitrogen liquefiers, high-purity nitrogen generators, vacuum pipes and Pressure Swing Adsorption (PSA) for oxygen/nitrogen generating, etc.; Meanwhile, it is also the professional manufacturer for integrated assembly or skid type of medium size of ASU for leaving workshop by Hangyang, its abilities of design and manufacture for integrated assembly of medium size of ASU reach the leading domestic level. Our company has the independent import and export trade qualification.

      Our company possesses professional technical personnel teams of design and EPC engineering of ASU and also possesses design ability of product such as independent process calculation, project design, unit design, project EPC. The manufacture base of our company was relocated to new site in 2009. Recently, the floor area is 40.34 acres. Combinating with relocation, the imported and set-up professional manufacture production tools, moulds and equipment forms the manufacture ability for manufacture ASU whose capacity is below 30,000Nm3/h. Our company carries out the international administration concept and obtains authentication certificates of management system such as ISO9001, ISO14001 and OHSAS18001 of DET NORSKE VERITAS. Meanwhile, we obtains manufacturing license for pressure vessels manufacture D1 and D2, Zhejiang new high-tech enterprise certificate and small and medium-sized technology-based enterprise certificate, our company possesses impeccably professional manufacturing credentials for medium and small size of ASU.

     Our company sets product research, manufacture, marketing and service in one to elaborately provide general customers superiorly coordinated service on the basis of decades experience in design and manufacture and administration concept by Hangyang. Products involve aspects such as metallurgy, petrifaction, electron, machinery, building materials and aerospace. Our products are not only sold well throughout China, but also sold to the West, and our company becomes the designated supplier for several well-known gases investment companies abroad. In the cooperation with transnational large gases companies, our company absorbs and imports the advanced design concept, strict administration program, exquisite manufacturing technology so as to lead our company to develop in the direction of diversification, exquisite products and large-scale. Hangzhou Hangyang Cryogenic Liquefaction Engineering Co., Ltd. undertakes EPC works of ASU under our company.
