DK26 multifunction loading photovoltaic solar posts crawler type
piling driver
A: Application of piling machine
1. highway guardrail drilling, piling, piling.
2. hotovoltaic pile piling, drilling, rotary pile.
3. other kinds of site piling (e.g. farms, pastures, orchards,
etc.).
B: Features of piling machine
C: Main technical data of piling machine
| NO | Item | Value | Unit |
| 1 | Dimension | 2700*2650*4200(working) | mm |
| 2700*2250*2550(folded) |
| 2 | Net weight | 2800 | kg |
| 3 | Diesel engine power | 33 | kw |
| 4 | Chassis body width | 1670 | mm |
| 5 | Hydraulic hammer type | YC260 | NM |
| 6 | Working force of hydraulic hammer | 10-14 | Mpa |
| 7 | Post length(max) | 3000 | mm |
| 8 | Impact frequency | 400-800 | bmp |
| 9 | Max. Torque of walking motor | 1950 | mm |
| 10 | Mast stroke | 2300 | mm |
| 11 | Drilling deptj | 1700 | mm |
| 12 | Borehole diameter | 68-300 | mm |
| 13 | Hydraulic system pressure | 70 | Mpa |
| 14 | Ralking speed | 18 | Mpa |
| 15 | Flow rate of hydraulic system | 60-90 | L/min |
| 16 | Max.traction speed | 30000 | m/h |
| 17 | Track height above the ground | 230 | mm |
| 18 | Climbing ability | 30 | ° |
D: More detail of piling machine
E: After sales service:
1.We can provide all-round technical guidance ff there is any
problem about our machine;
2.7*24 hours multi-language professional after-sales service group
3.Construction solutions will be provided for different geological
conditions.
4.All the accessories of that kind of machine can be provided for a
long time.
F: Packing and shipping about piling machine
Packaging: General export packing or customized packaging according
to your requirement.
Shipping: Professional goods shipping forwarders.
Delivery Time: 20 working days after deposit.

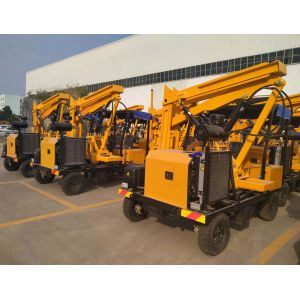

G: Company workshop environment:
We are a national high-tech enterprise specialized in the research and
development, production, sales, export and service of
multi-functional slip-form paver, water well drilling rig, aerial
platform truck, ladder truck, highway guardrail pile driver, solar
pile driver, hydraulic earth auger, piling rig spare parts and
other equipment.
