0.8mm pitch Insulation Displacement Connectors JST SUR connector Replacement

1, Detailed specification:

1. Basic information:

• Color: Cream
• Row No.: Single
• Circuits: 2pin to 22pin
• Insulation O.D.: 0.39mm
• Matched parts: A0800series wafer
• Pin material of wafer: Phosphor Bronze or Tin-plated
• Solder tabs:Phosphor Bronze or Tin-plated
• Wafer:standard type:Nylon 46 UL94V-0(cream); Halogen free:LCP UL94V-0
• Mounting Type: Disconnectable type
  IDC style, Compact type, Low-profile type

2. Electrical characteristic:

• Current Rating: 0.5A AC,DC(AWG#30);0.2A AC, DC(AWG#36)
• Voltage Rating: 30V AC, DC
• Contact Resistance: 20mΩ Max
• Insulation Resistance: 100mΩ
• Withstanding Voltage: 200V AC/minute

3. Mechanical characteristic:

• ​​Temperature Range:-25°C ~+85°C
• Terminal/Housing Retention Force:0.25kgf (Min.)
• Pin Retention Force:0.25kgf (Min.)

2, Related engineering drawing and testing report

The attached picture is our standard engineering drawing and report for your reference, it will help you to

know our product feature, then you can choose the right models.

Simplified Dimension Drawing

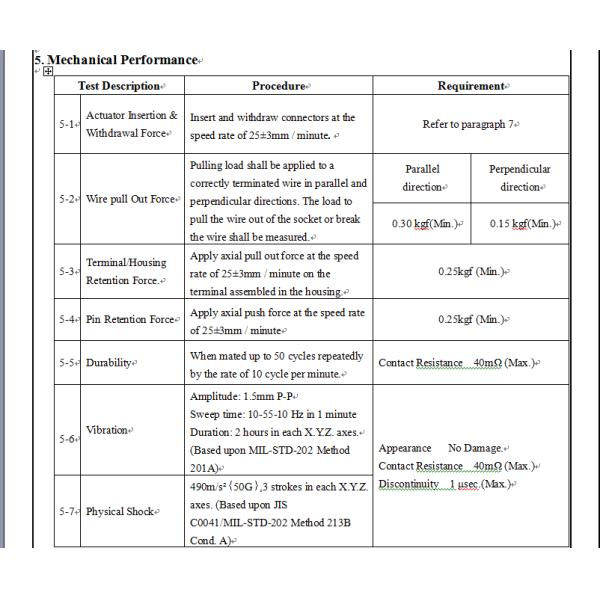

Testing report

4, Application field of this part

These series part are ideal for most of household appliance, computer, communication device. We also can controll defective rate in a low value, so our parts are accepted by famouse and international company like TPV, LeTV, Emerson, Amphenol Corporation, Skyworth, LuXshare, BYD etc. And the all products are certificated by REACH, UL, RoHS. In order to protect the evironment, some parts are halogen free.

5, Multiple, safe and fast shippment

Various quick delivery way can be offered by us, then you can get our parts to test in a very short time. And it makes your work more effective. Let's work together, connect the world.
