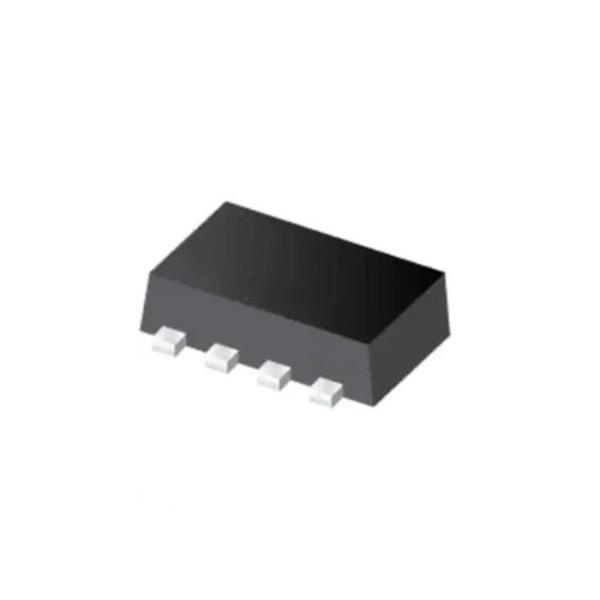

6V Automobile Chips TPS6285020MQDRLRQ1 2A Automotive Step Down Converter

    Buy cheap 6V Automobile Chips TPS6285020MQDRLRQ1 2A Automotive Step Down Converter from wholesalers

    Buy cheap 6V Automobile Chips TPS6285020MQDRLRQ1 2A Automotive Step Down Converter from wholesalers
    • Buy cheap 6V Automobile Chips TPS6285020MQDRLRQ1 2A Automotive Step Down Converter from wholesalers

    6V Automobile Chips TPS6285020MQDRLRQ1 2A Automotive Step Down Converter

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : TPS6285020MQDRLRQ1
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    6V Automobile Chips TPS6285020MQDRLRQ1 2A Automotive Step Down Converter

    6V Automobile Chips TPS6285020MQDRLRQ1 2A Automotive Step Down Converter


    Product Description Of TPS6285020MQDRLRQ1

    TPS6285020MQDRLRQ1 is a family of pin-to-pin 1-A, 2-A (continuous), and 3-A (peak) high efficiency, easyto-use synchronous step-down DC/DC converters.
    TPS6285020MQDRLRQ1 is based on a peak current mode control topology. TPS6285020MQDRLRQ1 designed for automotive applications such as infotainment and advanced driver assistance systems. Low resistive switches allow up to 2-A continuous output current and 3-A peak current. In the TPS6285020MQDRLRQ1, the switching frequency is externally adjustable from 1.8 MHz to 4 MHz. The devices can also be synchronized to an external clock in the same frequency range.
    In PWM/PFM mode, the devices automatically enter power save mode at light loads to maintain high efficiency across the whole load range. TPS6285020MQDRLRQ1 a 1% output voltage accuracy in PWM mode
    which helps design a power supply with high output voltage accuracy.


    Specification Of TPS6285020MQDRLRQ1

    Part NumberTPS6285020MQDRLRQ1
    Function
    Step-Down
    Output Configuration
    Positive
    Topology
    Buck
    Output Type
    Fixed
    Number of Outputs
    1
    Voltage - Input (Min)
    2.7V
    Voltage - Input (Max)
    6V
    Voltage - Output (Min/Fixed)
    1.8V
    Current - Output
    2A
    Frequency - Switching
    1.8MHz ~ 4MHz
    Synchronous Rectifier
    Yes
    Operating Temperature
    -40°C ~ 125°C (TA)
    Mounting Type
    Surface Mount
    Package / Case
    SOT-583
    Supplier Device Package
    SOT-583

    Features Of TPS6285020MQDRLRQ1

    • Family of 1-A and 2-A (continuous) and 3-A (peak) converters
    • Input voltage range: 2.7 V to 6 V
    • Quiescent current: 17 µA typical
    • Output voltage from 0.6 V to 5.5 V
    • Output voltage accuracy ±1% (PWM operation)
    • Forced PWM or PWM/PFM operation
    • Adjustable switching frequency of 1.8 MHz to 4 MHz


    Applications Of TPS6285020MQDRLRQ1

    • ADAS camera, ADAS sensor fusion
    • Surround view ECU
    • Hybrid and reconfigurable cluster
    • Head unit, telematics control unit
    • External amplifier

    Simplified Schematic Of TPS6285020MQDRLRQ1


    Pin Configuration Of TPS6285020MQDRLRQ1


    Functional Block Diagram Of TPS6285020MQDRLRQ1
