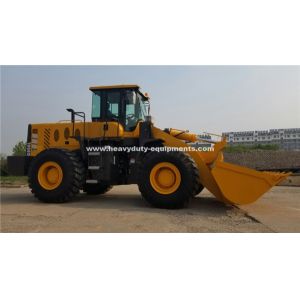

    LG958L 5 Tons Wheel Loader 3m3 Rock Bucket with Cummins Engine 6CTAA8.3-C215 ZF4WG200 for option

    Ask Lasest Price
    Brand Name : SINOMTP
    Model Number : LG958L
    Certification : CO
    Price : USD
    Supply Ability : 300 UNITS PER MONTH
    Delivery Time : 35 WORKING DAYS
    • Product Details
    • Company Profile

    LG958L 5 Tons Wheel Loader 3m3 Rock Bucket with Cummins Engine 6CTAA8.3-C215 ZF4WG200 for option

    LG958L 5tons Wheel Loader 3m3 Rock Bucket with Cummins Engine 6CTAA8.3-C215 ZF4WG200 for option


    Performance1rated load5000kg
    2overall weight16800kg
    3rated bucket capacity3m3
    4maximum tractive force152KN
    5maximum breakout force≥170KN
    6maximum grade ability30℃
    7maximum dump height3150mm
    8maximum dump reach1250mm
    9overall dimension (L×W×H)7920×3050×3400mm
    10minimum turning radius6640mm
    Engine11modelCummins 6CTAA8.3-C215
    12typelnline water cooling dry cylinder injection
    13No. of cylinder-bore/stroke6-126×130mm
    14rated power162kw--2000r/min
    15maximum torque860N.m
    16min fuel-consume ratio≤215g/kw.h
    Transmission system17torque converterYJ375 ( ZF4WG200 for option )
    18gearbox modePower shift normally engaged straight gear
    19gear shift4 forward shift 4reverse shift
    20maximum speed38km/h
    Drive axles21

    main reducing spiral


    bevel gear grade 1reduction
    22decelerating modeplanetary reduction,grade 1
    23wheel base (mm)3200mm
    24wheel tread2250mm
    25minimum ground clearance450mm
    Hydraulic system26system working pressure18MPa
    27boom lifting time5.95±0.2s
    28total time10.95±0.5s
    29fuel tank capacity300L
    30function of leveling automaticallyyes

    Brake system

    31service brakeair over hydraulic disc brake on 4 wheels
    32parking brakemanual parking brake
    Tyre33type specification23.5-25
    34front tyre pressure0.4Mpa
    35rear tyre pressure0.35Mpa

    Quality LG958L 5 Tons Wheel Loader 3m3 Rock Bucket with Cummins Engine 6CTAA8.3-C215 ZF4WG200 for option for sale
