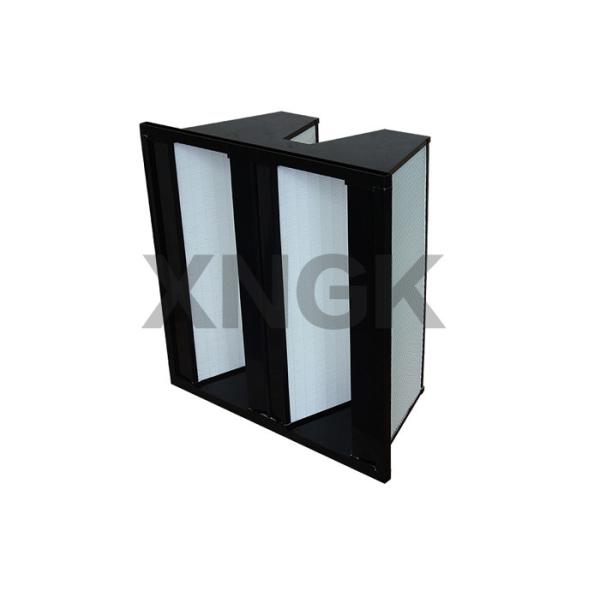

24 * 24 * 12 Inch V Bank Filter

V Shape Filter F8 EN:779 for Electronics Industries Cleanroom

Specification:

• Frame: ABS plastic, black color ( customized color available );
• Size: standard size, 24*24*12 inch or 12*24*12 inch, 592*592*292mm, 287*592*292mm;

2V, 3V, 4V design;

• Filter media: glass fiber or polyester;
• Sealant: polyurethane;
• Gasket: neoprene;
• Faceguard: painted metal mesh;

The different of polyester media with glass fiber media

• Polyester is stronger than glass fiber;
• Polyester has less initial resistance;
• Polyester get cheaper price;
• Glass fiber has better performance of dust holding;
• Glass fiber can be served for a longer period.

The V shape filter in an ideal filtration item for electronics industries HVAC system, especially the air is moist so the pocket filters cannot be applied.

V shape is the filtration before HEPA or ULPA filter to enlarge the service life of HEPA or ULPA;

XNGK is the professional manufacturer for air filters in Shenzhen China, our main product is Pre Panel Filter, Pre Pleated Filter, Pocket Filter, V Bank Filter, HEPA Filter, ULPA Filter, High Temperature Oven HEPA Filter, Laminar Flow Hoods, Pass Box, Air Shower, Fan Filter Unit, Clean Booth for Pharmaceutical, Food processing, Micron electronics, Hospital Cleanroom, and other commercial buildings such as airport, schools, libraries, supermarket; we also offer customized OEM service for air purifier filters, new fresh air system.

We have very strict quality control system, before production, we will test all the row material especially the glass fiber material. To make sure the pressure drop, efficiency and dust holding ability is reliable. After we make the HEPA filters, we will test if the HEPA filter get leakages by MPPS 1882 standard. We promise all the HEPA filters are without leakage and good performance. The glass fiber is made by HV company, their high quality glass fiber ensure our HEPA filters are quite good quality.
