865 ~ 868 MHz Wifi RFID Fixed Reader POE Function For Airport Baggage Detecting

865 ~ 868 MHz Wifi RFID Fixed Reader POE Function For Airport Baggage Detecting

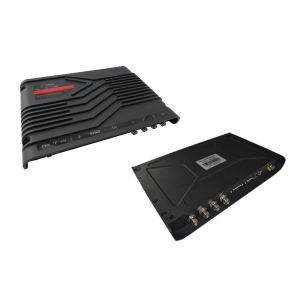

ZK-RFID406 is a UHF RFID fixed reader. It can be applied in many RFID application systems such as logistics, asset, access control, anti-counterfeit and industrial production process control system.

Competitive Advantage

1. Support WIFI, POE function;
2. 4 TNC antenna port with antenna auto-tuning and failure-detection;
3. Tag buffer size up to 800PCS (Max. 496bits EPC length);
4. Support EPC and TID inventory;
5. Support on-the-site firmware upgrading;
6. Optional Wince or Linux Operation System.
7. High reliability design;
8. Impinj R2000 RFID engine;

Specification

DESCRIPTION

1. Support ISO18000-6C(EPC C1G2) , ISO18000-6B protocol tag;
2. 860~868MHz/902~928MHz(customization optional);
3. FHSS or Fix Frequency transmission;
4. RF output power up to 30dbm(adjustable);
5. 4 TNC antenna port with antenna auto-tuning and failure-detection;
6. Support auto-running, answer, trigger and real-time-inventory work mode;
7. Tag buffer size up to 800PCS (Max. 496bits EPC length);
8. Support EPC and TID inventory;
9. Low power dissipation with single +9 DC power supply;
10. Support RS232, RS485, RJ45(TCPIP) with WiFi and POE optional;
11. Support on-the-site firmware upgrading and optional Wince or Linux Operation System.

Applications

1. Goods flow management.
2. Warehouse management.
3. Mail flow management.
4. Parcel and luggage flow management.
5. Parking lot management and E-Toll.
6. Fixed-point identification in production process.
7. Library management.
8. School management.
9. Asset management.
10. Inventory management
