| Item | Span width (m) | Bay spacing (m) | Eave height (m) | Ridge height (m) | Main frame profile (mm) | | MST-3 | 3 | 3 | 2.5 | 3 | 48X84X3 | | MST-6 | 6 | 3 | 2.5 | 3.5 | 48X84X3 | | MST-8 | 8 | 3 | 2.5 | 3.9 | 48X84X3 | | MST-10 | 10 | 3 | 2.5 | 4.3 | 48X84X3 | | MST-12 | 12 | 3 | 2.5 | 4.6 | 68X122X3 | | MST-15 | 15 | 5 | 3 | 5.4 | 108X150X3 | | MST-18 | 18 | 5 | 4 | 6.9 | 112X203X4 | | MST-20 | 20 | 5 | 4 | 7.2 | 112X203X4 | | MST-25 | 25 | 5 | 4 | 8.0 | 112X203X4 | | MST-30 | 30 | 5 | 4 | 8.8 | 113X259X5 | | MST-40 | 40 | 5 | 4 | 9.6 | 120X300X6 | The length can be extended by 3m or 5m bay such as
9m,12m,15m,18m... 15m,20m,30m,40m...Customized size or shape is available. |
Description: · Frame stress: hard pressed extruded aluminum 6061/T6(15HW) which can last more
than 10 years. · Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof,
flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear
resistant, self-cleaning ability, etc. · Roof fabric: 850g/sqm PVC · Connector: strong hot-dip galvanized steel · Allowed temperature condition: -30 degree Celsius~+70 degree Celsius · Wind load: max. 100km/h (can be reinforced) · Snow load: 75kg/sqm · Easy to be assembled and dismantled, movable. · Optional accessories to choose

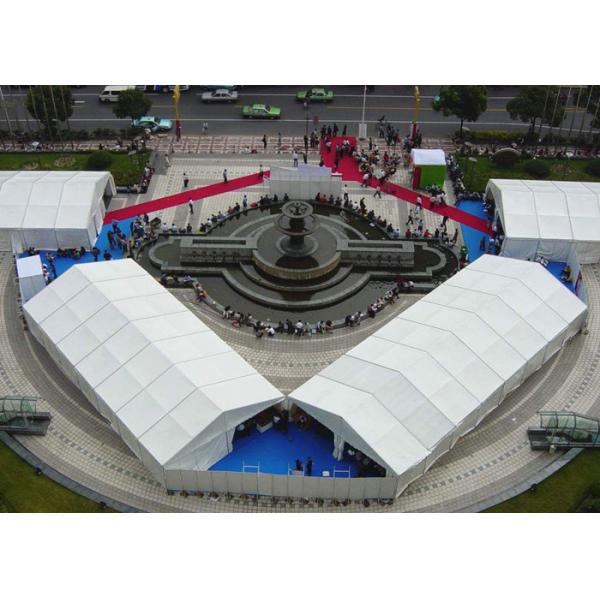

Aluminum marquee tent is more and more widely used for wedding
party, trade show, commercial conference and festival event. A shape aluminum tent is made of aluminum frame and PVC fabric.
Generally, the roof cover is 750 or 850g/sqm white PVC fabric, that
is blackout. The sidewall cover is 650g/sqm white PVC fabric. The
sidewall cover can be also chosen from Glass wall, ABS hard wall
and Sandwich wall. We have some more optional accessories for you
to choose, like lining and curtain, flooring, glass door, table,
chair, etc.
Applications: The 100 people aluminum marquee tent can be used for outdoor event,
graduation ceremony, industrial warehouse and so on. The 100 people aluminum marquee tent can be fixed on different
grounds, like concrete ground, grassland, sand, etc.
Competitive Advantage: · Custom design the tent according to the clients' requirements
,for example, higher height and more solid structure . · We will set up every tent when we finish the production
,Installation video or pictures can be taken and must be sent to
the client to check the quality and make payment of balance before
delivery. · Installation manual /drawings can be provided for free if
required, · Accessories can be provided at more favorable prices . · Frame can be working well for 10-15 years while fabrics for 6-8
years |
