5KW Powerful Motorleft Hand Drive Electric Mini Truck 2 Seats 1.2
Ton Loading Capacity
Feature And Application
1.It adopts the advanced electric drive technology in foreign
countries, and is equipped with a professional load bearing
chassis. The structure is strong, so that it has the
characteristics of large load capacity and strong power.
2.This section has 2, seats ,can be customized to install bus seats
and other facilities, suitable for campus, villages, airports,
terminal, real estate, tourist attractions, parks, amusement park,
community, garden style hotels, resorts, villas, city street, port
etc.
Description
Advantages of electric cargo vehicle
1.National standard
2.Long life and strong bearing capacity
3.Passed the national authoritative department's monitor
4.Gained old customer's trust
PERFORMANCE FEATURES:
Motor :48V/5KW AC motor
Battery:Maintenance-free battery 6V/170Ah*8pcs
Body & Roof:High impact fiber glass
Windshield :See-through Laminated glass
Seats:Sponge + artificial leather
Rear view mirror:2 PCS
Tire:Strengthened vacuum meridian tire, specification model: 155 /
80 R12, equipped with aluminum alloy rim.
Chassis:High strength steel pipe welding structure, anti-rust
electrophoretic paint treatment.
Steering:Gear rack steering system
Front Suspension:McPherson independent suspension, spiral spring +
cylinder hydraulic shock absorber.
Rear suspension:Directly connected integral rear axle, steel plate
spring + cylinder hydraulic damping non-independent suspension.
Lighting system:Headlights, turn signals, rear combination lights,
reversing buzzers, electric horns.
Specification :
| Passenger capacity | 2 seats |
| Max.Speed | 25km/h |
| Range(loaded) | 70 km |
| Climbing Ability(loaded) | 12% |
| Braking Distance | 4m |
| Min.Turning Radius | ≤4.5m |
| Recharge time | 8~10h |
| Dimensions |
| L×W×H | 3820×1430×1940 mm |
| Axle Distance | 1935mm |
| Curb Weight | 850kg |
| Max. loading | 900kg |
| Weight Platform(L×W×H) | 2400×1360×300mm |
| Standard Configurations |
| Motor | 48V/5KW AC motor |
| Controller | 48V (China Brand ) |
| Battery | Maintenance-free battery 6V/170Ah*8pcs |
| Body & Roof | High strength FRP body + sheet metal cargo platform
enclosure/Bifacial fiberglass. |
| Seats | High density polyurethane foam, outer wear-resistant waterproof
leather fabric. |
| Rear view mirror | 2pcs |
| Tire | Strengthened vacuum meridian tire, specification model: 155 / 80
R12, equipped with aluminum alloy rim. |
| Chassis | High strength steel pipe welding structure, anti-rust
electrophoretic paint treatment. |
| Steering | Gear rack steering system |
| Front Suspension | McPherson independent suspension, spiral spring + cylinder
hydraulic shock absorber. |
| Rear suspension | Directly connected integral rear axle, steel plate spring +
cylinder hydraulic damping non-independent suspension. |
| Lighting system | Headlights, turn signals, rear combination lights, reversing
buzzers, electric horns. |
| Brake system | Hydraulic double circuit four-wheel drum brake is used, with
mechanical parking (handbrake). |
| Charger | Car charger, Output:48V/25A, Input AC 220V/50HZ |
| Dashboard | Fiberglass molded instrument panel, voltmeter, ammeter, steering
indicator light, combination switch and so on. |
|

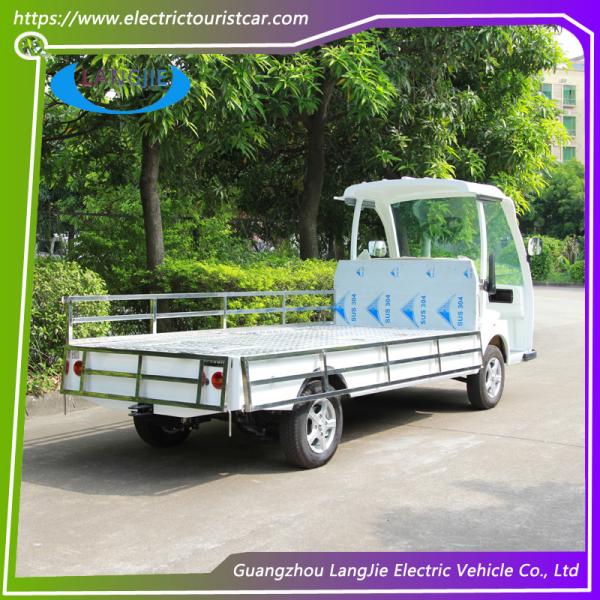

Showing Photo :
Product Advantages
1. Good aftersale-service, as most parts are manufactured by
ourselves;
2. Has CE certificate for whole carts.
3. Good hill climbing ability, the system allows you to customize
the car to fit your course;
4. Smart steering system, easy to make forward and backward;
5. Good climbing ablity and can park easily on Hills;
6. Can be easily to be modified to Towing Tractor.
FAQ:
1. What's your payment term?
T/T 30% deposit and balance paid before shipment.
2. Can we also purchase the parts
Yes,if you do maintainess service,you can also buy parts from us.We
are the profeesional for the aftersales,
3. How do you provide after-sales once customer bought the cart
from us?
Once you purchase the cart from us,then i will provide you manual
to learn it and tell you how to fix it.
