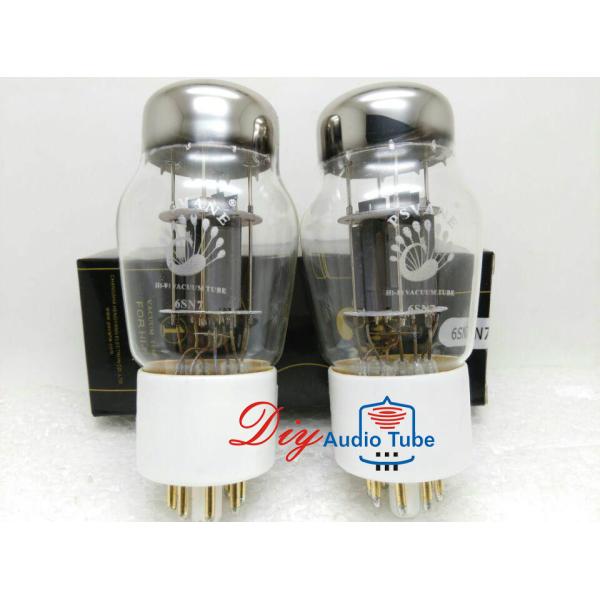

Stereo Vacuum Tubes PSVANE HIFI Audio Vacuum tube 6SN7 Re 6N8P/6H8C/CV181

Stereo Vacuum Tubes PSVANE HIFI Audio Vacuum tube 6SN7 Re 6N8P/6H8C/CV181

6SN7
Hi-Fi Series: classic style, exquisite craft, comprehensive and balanced sound performance, largest sales volume over the world, best choice for you .


6SN7 double triode 6SN7 is glass shell octal, in radio device, used for multivibrator or as resistance and capacitance coupled amplifying circuit.

Heater
UH …………………………6.3 V
IH…………………………0.6 A

Direct Interelectrode Capacitances

No.1 　　No.2
input 　　 2.2 　　2.6 PF

output 　　 0.7 　　0.7 PF
grid to plate 　4 　　　3.8 PF

Maximum Rating
class A
Ua 450 V
Ik 20 mA
Pa 5 W
Pa(No.1+No.2) 7.5 W
UH-k ±100 V
Rg 1 MΩ

Static Parameter
Ua………………… 90 250 V
Ug……………………0 -8 V
Ia…………………10 9 mA
Gm……………………3 2.6 mA/V
μ……………………20 20
ri……………………6.7 7.7 kΩ
Ia when Ug=-12.5V - 1.3 mA
Ug when Ia=-10μV -7 -18 V

Established in 2007 as an Electronic parts supplier, we start supplying NOS tubes to tube AMP factories since 2010. Nowadays, we are also supplying new tubes and other hifi DIY parts to tube amplifier factories and audiophiles.

Our production line:

1. Stereo Vacuum Tubes

2. Electronic Vacuum Tube

3. Vintage Vacuum Tubes

4. Vacuum Tube Sockets

5. Audio Electrolytic Capacitors

6. DIY LED Diode

7. Audiophile Grade Resistors

8. Tube AMP Board

9. Tube AMP Parts

10. Tube AMP Transformer

11. Guitar AMP Volume Knob

12. Guitar Amplifier Handles

All Hifi parts and tubes from us are sold at reasonable price with good quality, Welcome to visiting our website, we will provide best service no matter you are big HIFI products factories or individual audiophile.
