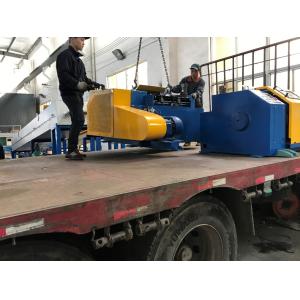

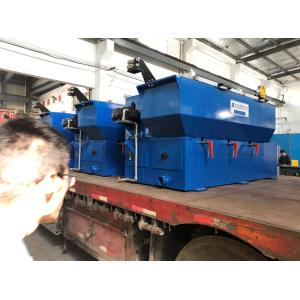

17DS Medium Aluminum Wire Drawing Machine , Aluminium Wire Manufacturing Machine

HXE-17DS Intermediate Aluminium wire manufacturing machine

I. Application

HXE-17DS Intermediate Aluminium wire manufacturing machine is used to draw Aluminium wire and Aluminium alley from 3mm-4mm to 0.4mm-2.5mm.

II. Compositions of equipment

III. Parameters

1. Inlet diameter: 3mm-4mm; Outlet diameter: 0.4mm-2.5mm

2. Speed: 0.7mm, 1300mpm, 80kg/h; 1.5mm, 1000mpm, 280kg/h; 2.0mm, 800mpm, 400kg/h.

3. Maximum dies number: 17

4. Outer diameter of the dies: 30mm * 15mm thickness 20mm * 10mm thickness

5. Slip ratio of m/c: 18.18%+13.5%

6. Main motor: AC 45KW, with 45KW Inverter.

7. Spooler / Coiler motor: AC 15KW, with 15KW Inverter

8. Loading of capacity: 480kg/max for DIN630mm Iron bobbin

9. Suitable diameter of bobbin: DIN 500mm/630mm

10. Brake: pneumatic brake

11. Capstan: Tungsten carbide

12. Capstan diameter: 254mm

13. Fix speed capstan diameter: 252mm

14. Machine Frame: Casted

15. Power transmission: Triangle belts

16. Machine dimension:3500mm*1200mm*1250mm, Machine weight: 4500kg

IV. Machine structure

For drawing machine part, there is belts that connection from the Fix-speed capstan to the Annealer machine to achieve the transmission, as keep same speed.

Connect the Up capstan and Down capstan with Positive and Negative power, to make the wire in a short circuit, to achieve the heating.

There is annealing plate to auto track and adjust the speed and annealing voltage.

To achieve fast coolant to make the wire soft(Annealing), the Down capstan is immersed into the coolant water(There is a water tank in the bottom of the Annealer machine), coolant water with 0.5% anti-oxidation. With the Pump to pump the coolant water through all pipes and valves, half sealed annealing door. Adjust the valves to adjust the coolant water in certain height.

To make sure the wire no oxidation, in the annealing protection pipe has steam (Buyer self will prepare Steam generator).

In the drying section, has a blowing device (Require two dies, Buyer self prepare), by compressed air (Buyer self prepare Air compressor) to blow the water on the surface of the wire.

V. Advantage and after-sale service

A: Advantage

(1). HENGXIE has some world famous parts suppliers, has special lubrication system for the gears and bearing.

(2). Body and other key components and parts are produced by our own factory , quality is reliable.

(3). Our company’s developing process in more than 10 years.

B: After-sale service

Our company for all machine product, since the shipment date, our company free after sale maintenance service guarantee period is:

(1) 1 year for mechanical part.

(2) 6 month for electrical part.

VI. Notes

6-1.When installation, make connect the ground wire.

6-2.When working, do not open the doors.

6-3.Do not touch the wire when annealing.

6-4.Regular check Coolant water, Steam, Compressed air.
