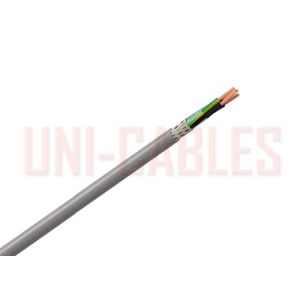

    LSZH IEC 60754 CY Shielded Flexible Control Cable Halogen Free 300 500V

    Ask Lasest Price
    Brand Name : UNI-CABLES
    Model Number : CY LSZH
    Certification : CCC,ISO9001
    Price : US$0.25-5.2 per M
    Supply Ability : 140000 per Week
    • Product Details
    • Company Profile

    LSZH IEC 60754 CY Shielded Flexible Control Cable Halogen Free 300 500V

    IEC Standard 60754 Control Cable Type CY LSZH Control Flexible Cable



    APPLICATION

    For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Used as interconnecting cable for measuring, controlling or regulation in control equipment for assembly and production lines, conveyors and for computer units. Suitable for flexible use when temporarily moved, and in conditions of medium mechanical stress. Can be used outdoors when protected against direct sunlight, and in dry or damp conditions indoors.


    CY control cables are not suitable for fixed wiring applications requiring compliance with the regulations set out in BS7671.


    CABLE STANDARDS

    BS EN/IEC 60754-1, BS EN/IEC 60332-1-2


    DIMENSIONS

    UNI-Cables
    PART NO.
    NO. OF CORESNOMINAL CROSS SECTIONAL AREA
    mm²
    NOMINAL OVERALL DIAMETER
    mm
    NOMINAL WEIGHT
    kg/km
    UNI02005CYLSZH20.55.735
    UNI020075CYLSZH20.756.145
    UNI02010CYLSZH216.357
    UNI02015CYLSZH21.57.375
    UNI02025CYLSZH22.58.7107
    UNI03005CYLSZH30.5653
    UNI030075CYLSZH30.756.463
    UNI03010CYLSZH316.673
    UNI03015CYLSZH31.57.795
    UNI03025CYLSZH32.59.2140
    UNI04005CYLSZH40.56.462
    UNI040075CYLSZH40.756.989
    UNI04010CYLSZH417.186
    UNI04015CYLSZH41.58.4118
    UNI04025CYLSZH42.510172
    UNI05005CYLSZH50.56.973
    UNI050075CYLSZH50.757.589
    UNI05010CYLSZH517.7102
    UNI05015CYLSZH51.59.1141
    UNI07005CYLSZH70.57.592
    UNI070075CYLSZH70.758.2115
    UNI07010CYLSZH718.4139
    UNI07015CYLSZH71.510181

    CONDUCTORS

    Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables

    NOMINAL CROSS SECTIONAL AREA
    mm²
    MAXIMUM RESISTANCE OF CONDUCTOR AT 20°C
    ohms/km
    0.539
    0.7526
    119.5
    1.513.3
    2.57.98

    The above table is in accordance with BS EN 60228 (previously BS 6360)


    ELECTRICAL CHARACTERISTICS

    Current Carrying Capacity at 30ºC

    NOMINAL CROSS SECTIONAL AREA
    mm²
    CURRENT RATING
    Amps
    0.59
    0.7512
    115
    1.518
    2.526

    The above table is a guide extracted from DIN VDE 0298 Part 4 and DIN 0100 Part 430


    DE-RATING FACTORS

    NO. OF CORES57101419244448
    DE-RATING FACTOR0.720.630.560.510.450.420.340.33
