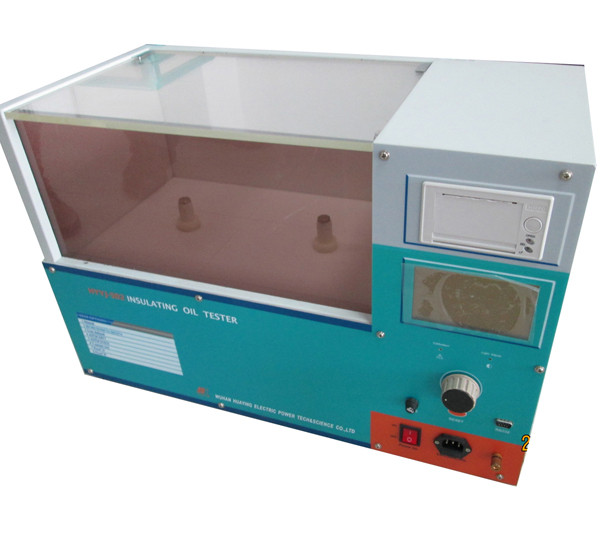

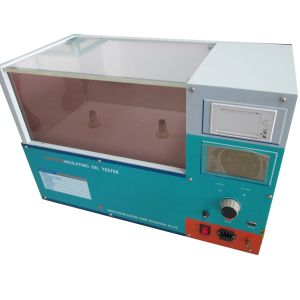

ASTM D1816 80KV Transformer Oil Testing Equipment With LCD Screen Display

ASTM D1816 80KV Transformer Oil Testing Equipment With LCD Screen Display

1. Product Name:

80KV Transformer Oil Breakdown Voltage Test Kit

2. Equipment Description:

HYYJ-502 80KV Transformer Oil Breakdown Voltage Test Kit is developed according to the national standard GB86 Insulating Oil Dielectric Strength Testing Method.

LCD screen can display test procedure and test result. All the human interaction operations complete by the rotating mouse .It is very easy for customers to measure the breakdown voltage of all kinds of oil by HYYJ-502 Oil Breakdown Voltage Tester. You can print the test result by the micro printer internal the tester. Of course, you can upload the test data to PC from RS232 for data analyzing. The special circuit design makes the tester has a good performance at stability and anti-noise.

Our company will provide 1 year free warranty and lifelong maintenance.

3. Main Functions:

1 Breakdown test of user-defined

2 Proof test

3 IEC156/IS6792/BS5874/

4 ASTM D1816 standard test

5 ASTM D877 standard test

6 5 minutes standard test

7 Manual test

8 Calibration interface for customers

9 Unloading data to PC and making word report automatically.

10 Result print

4.Technical Parameters:

Power supply	AC 220V
Output voltage	AC 0V~100KV
Rate of voltage rise	0.5kv/s±10%, 2kv/s±10%, 3kv/s±10%,5kv/s±10%
Max test times	9
Stir time	0~999s
Wait time	0~999s
Test error	3% max in the range of 10kv~100kv
Weight	41kg
Size	620 mm430mm330mm
