    Laboratory Inverted Fluorescence Microscope Long Work Distance Objective

    Ask Lasest Price
    Brand Name : NO
    Model Number : BDS400
    Certification : ISO9001, ISO14001, ISO13485, CE, RoHs
    Price : Discuss
    Payment Terms : T/T
    Supply Ability : 800 units per year
    Delivery Time : 10-20 work days
    • Product Details
    • Company Profile

    Laboratory Inverted Fluorescence Microscope Long Work Distance Objective

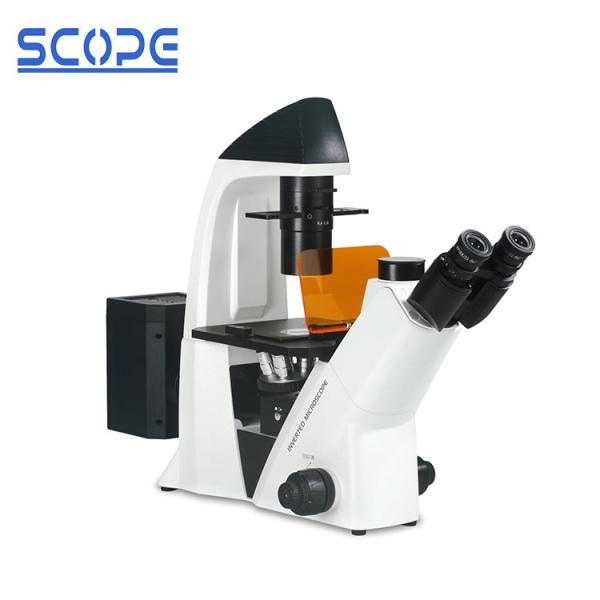

    BDS400 Laboratory Inverted Biological Fluorescence B,G.U,UV Microscope

    Laboratory Inverted Fluorescence Microscope Long Work Distance Objective

    Product Details


    1.Objective Parameter List (Cover-glass thickness1.1mm)

    TypeObjectivesN.A.


    Working distance

    (mm)

    LWD Infinity Plan ObjectivesLPL 4×0.1112.1
    LPL 10×0.258.3
    LPL 20×0.40
    7.2
    LPL 40×0.603.4
    LWD Infinity Plan Phase Contrast ObjectivesLPL Ph P 10×0.258.3
    LPL Ph P 20×0.407.2
    LPL Ph P 40×0.603.4

    2.Long working distance condenser N.A. 0.30,Working distance:72mm,Working distance: 195mm (without condenser),available for extra high culture dish

    3. Trinocular seidentopf head,inclined at 45 degree,light distribution:100:0 &80:20

    Product Parameter


    ItemSpecificationOutfits
    EyepieceWF10×/22mm(23mm is optional)●●
    LWD Infinity Plan ObjectivesLPL 4×/0.11W.D.=12.1mm
    LPLAN 10×/0.25W.D.=8.3mm
    LPLAN 20×/0.40W.D.=7.2mm
    LPLAN 40×/0.60W.D.=3.4mm
    LWD Infinity Plan Phase Contrast ObjectivesLPL Ph P 4×/0.10W.D.=9.2mm
    LPL Ph P 10×/0.25W.D.=8.3mm
    LPL Ph P 20×/0.40W.D.=7.2mm
    LPL Ph P 40×/0.60W.D.=3.4mm
    Annular Spot10×/20×/ 40×

    Seidentopf

    Trinocular Head

    Inclined 45°, interpupilary distance: 48-76mm

    Light distribution (both):

    100: 0(100% for eyepiece)

    80:20 (80% for trinocular head, and 20% for eyepiece)

    NosepieceQuintuple
    Mechanical Stage

    Stage size: X×Y: 210×241mm, Round slide size:Φ110mm,

    Attached mechanical stage

    (available for 96 holes plate, moving range X×Y:128×80mm.)

    Culture Dish Holder65mm
    54mm
    35mm
    blood cell counter
    Condenser

    Long working distance, Quickly detachable , N.A.0.3,

    Working distance: 72mm (with condenser),195mm(without condenser).

    Koehler Illumination6V/30W (input voltage:100V~240V)
    FilterBlue
    Green
    Amber
    Grey
    C-mount1× C-Mount (better for digital photograph)
    0.5×/ 0.75×C-Mount ( focus adjustable, better for digital camera)
    Epi Fluorescence IlluminationEpi fluorescence unit , field diaphragm,center adjustable.
    100W mercury lamp (OSRAM)
    5WLED
    B, G, V, UV fluorescence filters can be chosen.
    Digital mercury lamp power box (input voltage:100V~240V)

    Company information


    Chongqing Scope Instrument Co. Ltd., located in Chongqing, China, is a leading professional supplier in the field of microscope and accessories. We have rich experience and enthusiastic design team and strong core factory and supply the microscopes designed and manufactured by our core factory . Further more, we cooperate closely with the other main manufacturers of microscope in China, and supply the wide range of microscope to our customers. We supply biological microscope, metallurgical microscope, polarizing microscope, inverted microscope, fluorescence microscope, stereo microscope, digital camera for microscope and microscope’s accessories.


    Our strong core factory has ISO9001, ISO14000, ISO13485, CE, and RoHs certificate.


    As a professional microscope supplier and exporter, we have rich experience exporting team, and we export our microscope to worldwide market. Also, we supply professional service to our customers.


    We accept OEM and ODM term.
