    Square Type Inductive Proximity Sensor , Rotary Position Sensor Flush Type Mounting

    Ask Lasest Price
    Brand Name : KJTDQ
    Model Number : KJT-Y25/S4-ZPK-X2
    Certification : CE,RoHS
    Price : $12.3-15.6/pc
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 120000 pcs/ mouths
    Delivery Time : 3-5 work days
    • Product Details
    • Company Profile

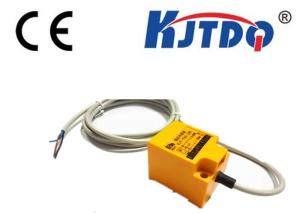

    Square Type Inductive Proximity Sensor , Rotary Position Sensor Flush Type Mounting

    Square type inductive proximity sensor Quality Guaranteed PNP NPN NO NC

    Quick details:


    Name: Proximity inductive sensor

    Output: Swicthing output

    Disatnce: 0-4mm (Flush)

    Mounting: Flush type

    Power supply: 10-36Vdc.

    Connection: Cable 2 m, 3 wires.

    Specifocation:

    DelP2 distance:10% below of the detection distance
    Detection objectMagnetic metal (the detection distance decreases when it is non-magnetic metal)
    Supply voltage

    DC type: DC12-24V(6-36V) Impulse(p-p) 10% below

    Ac type: AC110-220V (36-250V) 50/60Hz

    Consumption currentN.P type:13mA below D type:0.8mA below A type:1.7mA below
    Control outputN.P type:300 mA below D type:200mA below A type:400mA below
    Loop protection

    N.P.D type: reversal connection protection, surge absorption, load short-circuit protection

    A type: surge absorption

    Ambient temperature humidity

    During operation,storage: individually-30~+65(No freeze,no drew),

    During operation,storage: Individually35~95%RH

    Insulation resistance50 MΩ about(DC500 megameter) between charging and housing
    Withstand voltageAC1000V50/60Hz 1 min between charging and housing
    Temperature influence

    Temperature range-30~+65,at+23,+/-15% detection distance

    Temperature range-25~+60,at+23,+/-10% detection distance

    Voltage influence

    Inside+/-15%rated supply voltage range, at rated supply voltage value;

    Inside +/-10% detection distance

    Protection structureIP65 ICE specification
    materialHousing: Nickel plated brass; Detection surface: ABS

    Application:

    Proximity inductive sensors are mainly used in food production, packaging, agriculture, animal husbandry, plastics industry, woodworking, chemical industry, semiconductors, pharmaceuticals, etc.

    Competitive Advantage:

    1) Multiplicity appearance
    2) Compact volume
    3) High repeat orientation precision

    FAQ:
    Q: What's your warranty ? How about the quality of your sensors ?
    A: 18 mouths .
    We have the certification of ISO,CE,CCC.Our sensors can replace many famous brand sensors(BALLUFF,IFM,P+F,TURCK,OMRON,SICK,Contrinex,,KEYENCE,
    BANNER,BAUMER,AUTONICS,etc) You can provide us the date sheet and we check whether can produce.

    Q: How can we become your sale distributor ?
    A: If you can sell our products USD 5,000 to USD 60,000 per year,you could be one of our distributors in your city or area.We have price protection policy in every area.
    We still looking for more distributors,do you like to join us?
