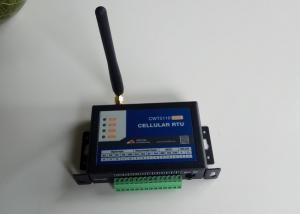

data logger with gsm module, wireless data logger system

System Feature

• Industrial NXP 32-bit ARM MCU
• Double watchdog to ensure stability
• With signal filtering mechanisms
• Stable reconnection strategy for data transmit
• Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
• Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
• Can automatically execute tasks according to preset Events
• Provide console utility for visual programming over 100 parameters
• Optional inside lithium battery for power lost alarm and keep 8-20 hours working

DI feature

• Accept NO or NC dry contact

DO(T) feature

• Open-collector output(drive voltage=power supply voltage, Drive current≤500mA)
• on/off/pulse DO by remote control or local event
• Remember status when power lost

DO(K) feature

• Relay NO contact output(load: 2A / 125VAC,220VDC)
• DO can be activated by remote or local schedule
• Status memory function for power lost

AI feature

• Standard 4-20mA (option: 0-5V) signal in, Sampling frequency: 33Hz, 10-bit precision)
• Convert signal to actual measure value,support adjustment
• Configurable parameters for signal acquisition, alarm, data communication
• Detect connect or disconnect to alarm

SMS feature

• Preset 10 phone numbers (support distribute authority to receive sms)
• Sms alarm when any IO channel triggered or out of preset normal range
• Editable alarm and recover sms with time stamp
• Can send sms command to request any channel status or value
• On/off/pulse output by sending sms
• Sms report any IO channel’s status or value on schedule
• Remote setting via sms commands
• Can query SIM card balance, sms forward
• Power lost and recover alarm by sending sms

Wireless network communication

• Option network: cellular(2g/3g/4g) or Wi-Fi
• Communicate with up to 4 servers(IP or domain) by TCP/IP '
• Support post or respond mode for data communication
• Communication protocol: Modbus TCP,http post, Cwt_IO(two-way communication)
• Support two-way data transparent transmission with RS485 or RS232

Modbus feature

• Can be modbus master read/write salve over RS485
• Can work as a modbus slave to be read/write by master(HMI, SCADA etc.)
• Run Modbus RTU or TCP protocol over GPRS/3G

TI feature

• Option temperature probe or temperature&humidity probe, support alarm, interlock, data communication ;;
• Can switch ℃ or οF
• Support probe disconnect alarm

Wireless Remote Monitoring Solutions

Whatever term you use for Telemetry, whether it's remote monitoring, M2M, Machine2Machine, Machine2Man or even Man2Machine then CWT wire free telemetry products will serve you well. Our Telemetry Solutions have been designed with the user in mind, so they are cost-efficient, easy to configure and install.

We can interface to machines in different ways, whether it be via process signals, or serial communications, including Modbus.

Benefits of Telemetry

This ‘Internet of Things’ telemetry technology offers rapid payback, delivering operational, environmental and financial benefits, from cutting delivery miles, to reacting in good time to warnings of machinery breakdown, leakage, theft, run-outs and safety breaches.

Why choose CWT

CWT award-winning Telemetry Solutions are proven globally, in a range of sectors including chemical & petrochemical, food distribution and production, transport, water & waste, environmental and factory automation.
