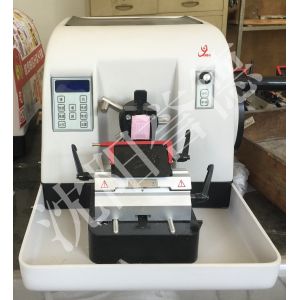

Full-Automatic Clinical Rotary Microtome SYD-S3050, Rotary
Microtome, Shenyang YUDE
Function and Characteristics:
LCD screen, intelligent programme control, easy-to-use operate.
The thickness of cutting section and trimming slice can be adjusted
arbitrarily.
With fast forward button/fast backward button and slow forward
button/slow backward button, easy to operate.
Automatic retract function.
Section count function.
Arbitrarily use automatic cutting or manual cutting.
Available to set the number of automatic cutting sections.
Regulation of automatic cutting speed fuction.
Adjustable angle of blade holder.
Imported bearings, tightly structure of movement, free from
maintenance.
The handwheel brake can make locking at an arbitrary position at
any angle of 360 degree.
Dual knife protection device, it is convenient, safe and practical.
The standard sample holder or ordinary sample holder that holds the
wax block.
Steel knife, blade with the blade of the knife holder can optional,
which the blade, slicing, knife holder can move around.
Big waste collecting box, clean, convenient, beautify and
dignified.
Technical Parameters:
1.The range of cutting section thickness: 0～100μm
2. Slice adjust the minimum index value: 0.5μm
3. Size of maximum sample: 50×45mm
4.The range of trimming section thickness:1～300μm；1-600μm
5.Horizontal dislocation of Sample: 25mm
6. Vertical displacement of Sample:60mm
7. Range Adjustable Angle of Blade holder: 0～10°
8. Range Adjustable Angle of the side of tissue section: 0～8°
9. Overall Dimension(L×W×H):550mm×340mm×320mm
10. Power: AC220V±10%, Frequency: 50Hz/60Hz
11. Rated Power: 70VA
