Product introduction
High Capacity Pneumatic Vacuum Conveyor With Vacuum Generator For
Powder
Pneumatic vacuum conveyor is a kind of by means of vacuum suction to transmit granular and
powdered materials
transportation equipment, widely used in food, feed, paint,
pharmaceutical, chemical, ceramics, agricultural production and
scientific research. Using vacuum conveyor can greatly reduce the
workshop dust pollution, improve the cleanliness, the bodhi high
productivity, and save manpower, reduce pollution.
Pneumatic vacuum conveyor uses a vacuum pump to produce vacuum, and the negative pressure
generated by the vacuum will be sucked into the material from the
feed port. The air is then separated from the material in the
filtration bin of the separation vessel. Materials fall
automatically due to gravity and are collected in the silo. Our
cyclone separator prevents fine powder from entering the filter to
improve its efficiency. When the silo is filled with material, the
vacuum pump automatically closes and the pressure in the conveying
equipment reaches balance. The discharge valve opens, and the
material flows out through the discharge port and directly into the
storage container. When discharging, the filter element is
automatically cleaned by the blowback air bag. At the end of
blanking, the discharge chamber automatically closes and the whole
conveying process starts again.
Product parameters
| Model | QVC-1 | QVC-2 | QVC-3 | QVC-5 |
| Delivery(kg/h) | 50-300 | 100-700 | 300-1500 | 600-3000 |
| Warehouse volume(L) | 1.1 | 6.0 | 12.0 | 42 |
| Operating pressure(Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Compressed air consumption(N/min) | 180 | 360 | 720 | 1440 |
| Machine can be customized according to your needs |
[Product Features] :
a) - Closed transmission, no dust leakage, no cross pollution;
b) - Meet GMP standards, meet CIP requirements, can provide sterile
grade products;
c) - Modular design, eliminate dead corners, fast and convenient
disassembly and cleaning.

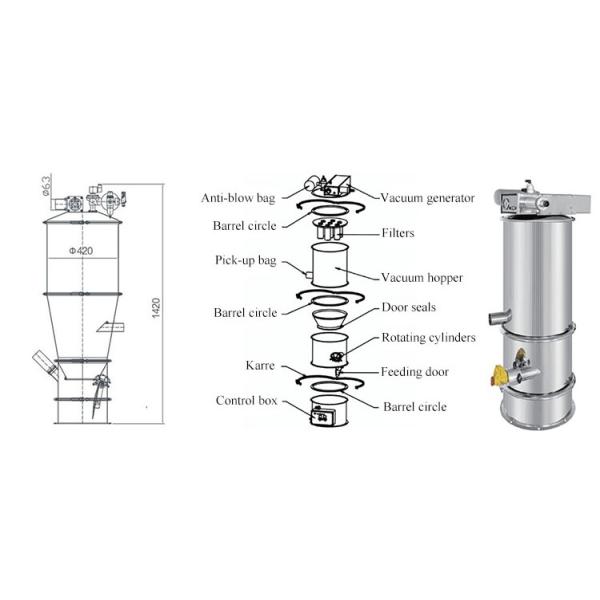

Product structure
Application
Application scope: food industry additives, confectionery,
afterbirth sugar pills, cocoa powder, crystals, etc. Plastic
industry: polystyrene particles, polyethylene particles,
recirculated rubber, polyurethane particles, vinyl - propylene
particles, powder materials, granular materials, mixed materials,
tablets, capsules and so on in the pharmaceutical industry;
Chemical raw materials, dyes, flammable and explosive materials and
toxic and harmful materials, etc.; Industrial raw materials, wastes
and other materials; Agricultural bulk materials, etc.
The following figure shows some of the materials used in vacuum
conveyor. If you want to know more about the materials used, please
contact us, our professional engineers will answer your questions.

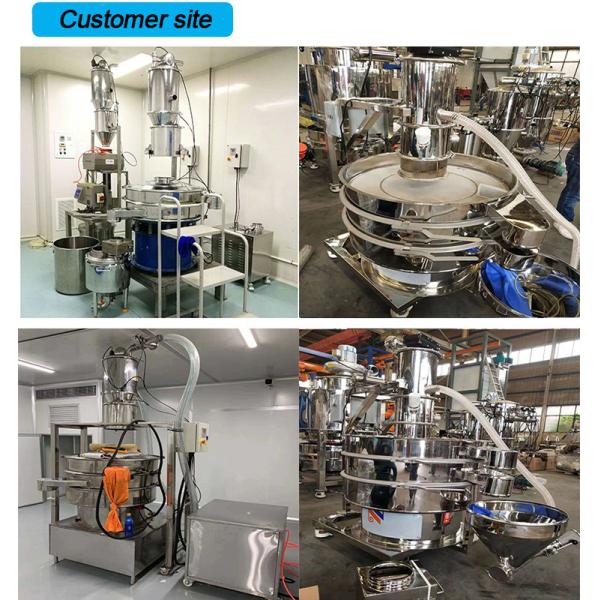

* The figure below shows some customer applications of our vacuum conveyor. If you want to know more about product application, or consult
smart powder solutions, please contact us.
