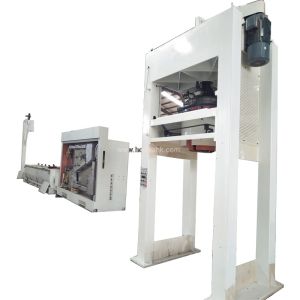

220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine

    Buy cheap 220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine from wholesalers

    Buy cheap 220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine from wholesalers
    • Buy cheap 220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine from wholesalers
    • Buy cheap 220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine from wholesalers
    • Buy cheap 220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine from wholesalers
    • Buy cheap 220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine from wholesalers
    • Buy cheap 220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine from wholesalers
    • Buy cheap 220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine from wholesalers

    220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-D-400-13
    Certification : CE/ISO
    Price : US$235500-237500/1set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1 set per month
    Delivery Time : 60 Working Days
    • Product Details
    • Company Profile

    220KW Copper Wire Steel Aluminum Rod Breakdown Wire Drawing Machine With Annealing Machine

    High Tech 8mm Copper Aluminum Rod Break Down Wire Drawing Machine

    Application

    The rod breakdown machine is basically capable of drawing wire down to diameters between 1.2 and 3.5 mm. Some 85 % of the material processed will serve as 1.8 mm input wire fed into our single and multi-wire drawing lines.

    It largely goes into payoff packs with a maximum capacity of approximately 1.5 to 2 tons, with a particular focus on optimizing the winding quality.
    Youtube Video Reference: https://www.youtube.com/watch?v=rg227TjsMno

    General Parameters

    1Suitable materialsHypoxia/Anaerobic round copper wire or aluminum alloy
    2Inlet Diameter8-10mm
    3Outlet Diameter1.2-3.5mm
    4Number of Dies13
    5Main Motor PowerAC 220 KW
    6Annealing PowerAC 320 KW
    7Production SpeedMax 1500 M/Min
    8Voltage380KV, can be customized
    9Weight25000 KG
    10Measurement (L*W*H)28*5.5*5 M


    Main Components

    1. Host Drawing Machine

    1Suitable materialsAnaerobic round copper rod and aluminum alloy rod
    2Inlet Wire Dia.(mm)8-10mm
    3Outlet Wire Dia.(mm)1.2~3.5mm
    4Mechanics Speed(m/min)1000-1500
    5Capstan Dia.(mm)Front 5 pcs 500mm, Rear 7 pcs 400mm
    6Constant Speed Capstan Dia.(mm)450mm
    7No. of Dies(Channel)13
    8Dies Outlet Size(mm)50mm
    9Mechanics Elongation (%)15-41
    10Main Motor Power(KW)AC200
    11Constant Speed Capstan Motor (KW)AC55
    12Lubricant Pump Motor(KW)4
    13Drawing Coolant ModeFull Immersion
    14Dimension(mm)L×W×H9000×1800×1200
    15Machine Net Weight(kg)About 17000


    2. Annealing Machine

    1Wire Size range of Annealing(mm)1.2~3.6
    2Annealing ModeContact mode DC annealing
    3Max. annealing DC current (A)5000
    4Max. annealing DC voltage (V)60
    5Dehydration Die Dia. (mm)55
    6Capacity of annealer transformer (KVA)425
    7Power of Steam Generation (KW)18
    8The amount of steam (Kg/h)20
    9Dimension(mm) L×W×H4250×1200×2500
    10Machine Net Weight(kg)About 4500


    3. Take-up Machine

    1Max. Coiling Speed(m/min)1300
    2Dia. of Wire Take Up(mm)1.2~3.6
    3Coiler Basket Dia.(mm)800
    4Size of Take upΦ630mm
    5Take Up Motor(kw)AC 18.5
    6Transport Reel Motor(kw)0.75
    7Dimension(mm) L×W×H4280×3800×4550
    8Machine Net Weight(kg)About 5000

    Drawings


    Packaging & Shipping

    For regular way, clear PE film wrapped, wooden frame packed, loaded into container and shipped by sea. Special packaging way could be discussed.

    Our Advantages


    Our Focus

    1.Design. Our engineers keep study in industry and work with sales to learn more about market, then update our machines accordingly.
    2.Quality. We emphasis quality at the first place. This is why we keep developing and getting stronger year by year.
    3.Customers' success. We not only focus on the sales of machines, but also pay attention to the our customers' development. We pursue growing together with customers by providing long-term and full-range support to help them achieve success.
    4.Supply more environmentally friendly products.
    5.Feed back to the community and help more people.


    FAQ

    Q1:What is your main brands for the electrical and mechanical parts?
    A:Oversea famous brand parts such as German siemens motor, Japanese nsk bearing and yaskawa inverter etc.
    Q2:What is your advantage with other suppliers?
    A:What we can offer to our clients is not only the machine itself, but also offer: factory design, production process
    design, talent training, assist machine and raw material offering .

    Q3:What's the payment terms?
    A:T/T or L/C, 50% deposit and 50% balance before delivery, can be discussed also.

    Q4:How long for the guarantee?
    A: One year and charge for maintenance and upgrade in the whole life.

    Q5: Do you have a video to show the machine running ?
    A. Yes, you can visit our youtube channel : tiezhong chi.
