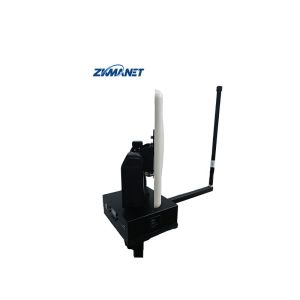

ZKManet2441 is a communication ground station designed for long
distance, with built-in antenna tracking module, supporting all
kinds of directional antenna tracking airborne modules. It realizes
the automatic tracking function of directional antenna to improve
the communication distance.
Features
1 Simultaneously equipped with an inertial compass (gyroscope) and
a magnetic compass
2 Simultaneously equipped with image transmission and Lora dual
link communication
3 Integrated tripod and suction cup installation, with a 360 degree
non winding sliding ring design
4 Using high gain directional antennas to increase point-to-point
communication distance, resulting in longer transmission distances
5 Easy to operate and use in emergency situations
6 Both the ground station and onboard modules are equipped with
positioning modules, which can provide real-time positioning and
refresh pointing angles.
7 Using 1T2R mode with directional antenna as the transmitting and
receiving function and omnidirectional antenna as the receiving
function can better transmit signals.
| Working Frequency | 800MHz,1.4GHz ,2.4GHz |
| RF Bandwidth | 5/10/20MHz |
| RF Channel | 1T2R |
| Transmission power | 33dBm |
| Motor torque | 30N*m |
| Rotation angle | 360 degree horizontally, 90 degree vertically |
| Angular accuracy | 2 Degree |
| Max. motor speed | 0.13s/60degree |
| RF interface | N*1,SMA*2 |
| Network interfaces | Waterproof Air Interface |
| Power interface | Waterproof DC Interface |
| Coverage distance | 30km, Long Distance, Long Distance, over Long Distance(can be
customized) |
| Max Throughput | 30Mbps(Max) |
| Encryption | AES128 |
| Size | 306*396*416mm |
| Weight | 4.2kg |
| Working temperature | -20C+60C |
| IP rate | IP65 |
| Power input | DC12V |
| Power consumption | <High Power |
1- GPS antenna 6- battery indicator
2- MESH directional antenna 7- Omni Antenna Interface
3- Lora antenna port 8- Ethernet & Serial Ports
4- Power on button 9- Waterproof DC charging port
5- OLED screen, buttons
