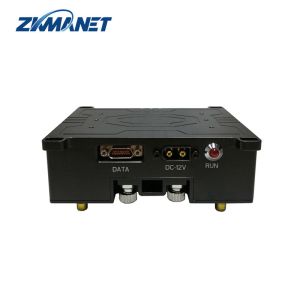

ZKManet2451UM is a 4W MESH video data link that can be used in
various communication combinations for different usage scenarios.
It can be used on moving vehicles, ships, robots, drones, unmanned
boats, etc., allowing for easy plug-and-play operation without the
need for configuration or parameter changes. It is primarily used
for multimedia interconnection between drones and individual
soldiers, and between individual soldiers and base stations.
* Data rate up to 82Mbps
* Range up to 40~49km
* Full transparent IP data transmission
* With HDMI input
* Supports 8 nodes customizable
* Small size and light weight
| Model | ZKManet2451UM | Brand | ZKMANET |
| RF Parameters | Frequency | 1400-1460MHz (300MHz-3.8GHz Customizable) |
| Bandwidth | 5/10/20/40MHz |
| RF Channel | 2T2R |
| Output Power | 4W |
| Network Parameters | Network Size | 8 nodes customizable |
| Data Rate | 82Mbps |
| Encryption | AES |
| Range | 40-49 km (LOS) |
Physical/
Environment | Dimensions | 113*84*38mm |
| Weight | 450g |
| Working Temp | -40ºC~+65ºC |
| IP Rating | IP54 |
| Electronic Parameters | Power Supply | DC12-24V |
| Power Consumption | <12W |
| Other | HDMI Interface | Support |
| LAN Port | Support |
| TTL Port | Support |
- MESH antenna interface, SMA F
- HDMI input interface
- MESH antenna interface, SMA F
- LAN/TTL interface (J30J-15TJ connector, PIN 1, 2, 3 and 4 for LAN, PIN 5, 6 and 7 for TTL GND,
TX and RX)
- Power input interface
