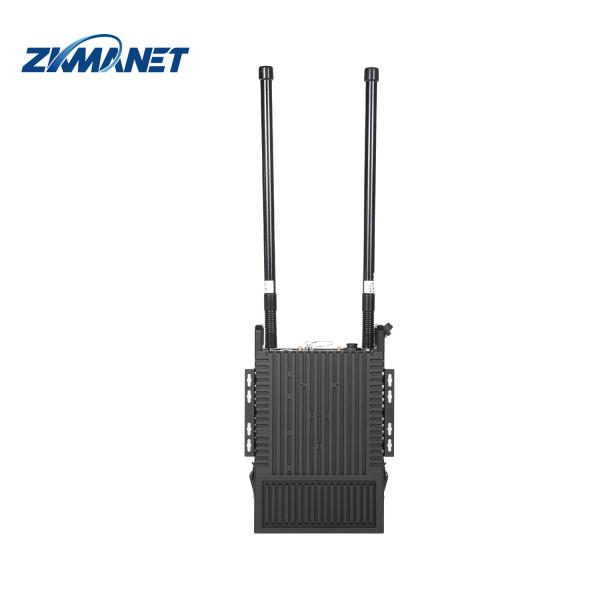

ZKManet3261 is a high-power self-organizing network radio
(optional: adaptive frequency selection radio/ frequency hopping
radio), with a customizable transmission frequency range from 70M
to 6G. It adopts our new-generation multi-hop self-organizing
network protocol wireless technology, which has the ability to
adaptively select frequencies and hop frequencies in complex
channel environments, enabling broadband service transmission in
complex scenarios. It enables networking between individual
soldiers, vehicles, drones, and fixed points, allowing users to
quickly establish dedicated networks in emergency situations. This
provides users with stable wireless transmission channels for
voice, IP data, video, and other communication needs.
* Frequency 1300-1500MHz (70MHz-6GHz customizable)
* Supports FHSS and IFS (Intelligent Frequency Selection)
* Supports AES256 Encryption
* 2x40dBm power output
* Supports 4G-LTE and WIFI connection
* Data rate up to 56Mbps
* Supports up to 32 nodes
* Supports GPS/BD/GLONASS (GNSS)
* Full transparent IP data transmission
* Supports Web and PC software management
* With LCD to show the device parameters in real time
* HDMI input as optional
* Rugged IP66
| RF Parameters |
| Default Frequencies | 1300-1500MHz (70MHz-6GHz customizable) |
| Channel Bandwidth | 2.5M/5M/10M/20MHz (40MHz optional) |
| RF Waveform | TDD-COFDM + 2T2R |
| Output Power | 2x40dBm, 1dBm step adjustable |
| Receive Sensitivity | -100dBm@2.5MHz |
| Modulation Type | BPSK/QPSK/16QAM/64QAM (adaptive) |
| FHSS | Optional (>1000 hop/s) |
| IFS | Optional |
| Network Parameters |
| Network Size | Up to 32 nodes |
| Multi-hop Capability | 15 hops (short messages); 10 hops (voice) ; 8 hops (video) |
| Range | 50-70km (Air-to-Ground LOS)
30-50 km (Ground-to-Ground LOS) |
| Communication rate | Up to 28Mbps@10MHz & 56Mbps@20MHz |
| Delay | 7ms@2.5MHz/hop |
| Movement Speed | >1000km/h |
| Start Time | 27s |
| Positioning | GPS/BD |
| Network Access Time | <1s |
| Network Extension | WIFI AP/4G Router (optional) |
| Electrical Parameters |
| Working Voltage | 12-24V |
| Power Consumption | 937dBm |
| Battery Life | 6 hours (13Ah) |
| Physical/Environment |
| Weight | 4.75kg (with battery) |
| Dimensions | 320*200*70mm |
| IP Rating | IP66 |
| Working Temp. | -40°C~70°C |
| Interface |
| LAN interface | *1 |
| Voice Interface | PTT Mic (7-pin LEMO connector*1) |
| Video Interface | HDMI (optional) |
