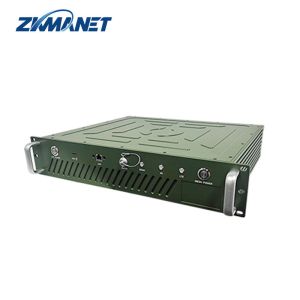

The ZKManet7771 is a high-performance rack-mounted base station
specially developed for emergency communication. It integrates
various communication methods including MESH network, LTE private
network, 4G public network, WIFI and wired network, and supports
GPS/BD positioning. It can be powered by vehicle power supply, and
suits different geographical and network environments to solve
emergency on-site communication problems. With the management
software, the devices under the network can be managed remotely,
and through the visualization platform, video monitoring and
command and dispatch can be performed.
* Rack-mounted design for easy installation and use
* Support vehicle power supply and utility power
* Supports LTE private network handheld access
* With WI-FI AP and supports cell phone, laptop and other smart
devices access
* Supports Mesh self-organizing network device access
* Supports 4G
* Supports GPS/BD
* Supports remote management
1- LTE Power Switch
2- 4G Card Slot
3- Network Port
4- Intercom Interface
5- MESH Signal Indicator
6- 4G Signal Indicator
7- LTE Signal Indicator
8- MESH Power Switch
9- MESH Antenna Interface 1
10- MESH Antenna Connector 2
11- Power Input Connector
12- Network Port
13- Serial port (spare)
14- BD antenna interface
15- 4G antenna interface
16- WI-FI Antenna Interface
17- LTE Antenna Interface 1
18- LTE Antenna Interface 2
| Model | ZKManet7771 |
| RF Parameters | Working Mode | Support MESH/3GPP R9 protocol |
| Frequency | MESH: 580MHz (customizable);
LTE: 1.4GHz (customizable) |
| Bandwidth | 2/5/10/20/40MHz |
| RF Channel | 4T4R |
| Output Power | 43dBm |
| Range | MESH: 10~15KM
LET: ≥2KM |
| Network Parameters | Network Capacity | 64 nodes; No less than 9 hops |
| Data Rate | LTE: uplink:>50Mbps; downlink:>15Mbps
MESH: 82Mbps |
| Encryption | AES128 |
| Public Network | 4G |
| Positioning | BD |
| WIFI | 2.4/5.8G |
| Physical/ Environment | Dimensions | 430*360*89mm |
| Weight | <10kg |
| Working Temp | -40ºC~+65ºC |
| Electrical Parameters | Power Supply | AC220V/DC12V |
| Power Consumption | <100W |
