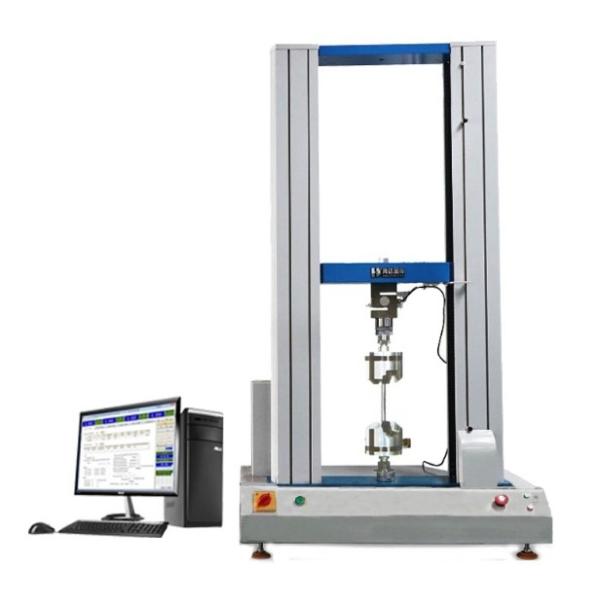

Plastic Yarn Tensile Strength Testing Machine Hydraulic Clamping
Applicable Industries of Tensile Testing Machine:
Use Manual Tensile Strength Tester Price can test various materials
(both finished and semi-finished products ) of tensile
strength ,compressive strength and elongation ,can do stripping
,tear strength ,flexural ,compression test and etc. It can connect
up to the computer and display or printout the test times , test
value , max. value , etc . Also it can make various report forms
according to the requirements .
Parts Of Universal Testing Machine,Tensile Compression Testing
Machine,Universal Testing Equipment is widely used in all kinds of
hardware, metal, rubber and plastics, footwear, leather, clothing,
textiles, insulators, wires, cables, terminals and other types of
materials, testing, tensile, tear, peel,compression, bending,
shear, three-point bending ... and other physical test performance.
Features of Tensile Testing Machine:
1. The machine has completely changed the new material testing
machine for the whole calculator operation, which was developed
from the shortcomings of the conventional material testing machine,
which is bulky, complex and complicated.
2. The structure adopts the steel plate and aluminum extruded plate
with advanced baking paint, with high precision, low resistance,
seamless precision screw and guiding column, which improves the
load efficiency and structural rigidity.
3. The control system adopts the motor of the whole digital
communication server to ensure that the transmission system is high
in efficiency, stable in transmission, low in noise and accurate in
speed.
4. Microcomputer system by commercial calculator as the main
control machine, cooperate with the company's QCTech testing
software, can complete all of the test parameters setting, working
state control, data acquisition and processing analysis, result
display and printing output;
5. Dedicated measurement and control system is specially designed
for microcomputer electronic universal testing machine.It can
stretch, compress, bend, shear, tear and peel off test.The data
acquisition, preservation, processing and printing test results of
PC and interface board are adopted.It can calculate the maximum
force, yield force, average stripping force, maximum deformation,
yield point, elastic modulus and other parameters;It can perform
curvilinear processing, graphical graphical interface, flexible
data processing, ms-access database support, making the system more
powerful.
Technical Parameters of Tensile Testing Machine:
| Capacity | kg | 2000 | 1000 | 500 | 200 | 100 |
| Accuracy | High precision | 0.5 level , ±0.5%, |
| Load sensing | High precision tension and pressure transducer,(multiple sensors
can be installed at the same time - optional) |
| High resolution | 1/500000 |
| Magnification | 24digit AD No period of zoom |
| Unit choose | N, KN, Kgf, Lbf |
| Test speed range | Servo : 0.5~500 mm/min can set |
| Speed control accuracy | ±0.2% (0.5level ) |
| Test effective width | 400 mm |
| Test effective stroke | 700 mm |
| Two column height | 1400 mm |
| Overload setting protection function | When the set test force exceeds 10%, the system will automatically
stop for protection |
| Protection function of stroke setting | Protection for upper and lower limit position of stroke |
FAQ:
Q: What's the material of machine?
A: Cast iron, stainless steel
Q: Do you accept customization service?
A: Yes, we accept non-standard customized testing apparatus.
Q: What's the production time?
A: In general, the delivery time will be about 45-55 working days
after deposit receipt. If you're in urgent need, we could try to
produce your order in advance.
Q: What's the warranty and after sales service?
A: Our warranty is one year. Within warranty, after sales service
is for free. For after sales service, we will dispatch our engineer
for commissioning at customer's place. The air tickets and
accommodations are covered by our customer. Besides, we offer
commissioning by video guidance.
Q: What's the Packaging?
A: Usually, all the machines are packed by wooden case. For small
machines and components, it is packed by carton.
Q: What's the payment term?
A: T/T, L/C and other payment terms could be negotiated.
