Product Description
NBR, HNBR, Or EPDM Gaskets, Which Enhance The Performance And
Efficiency Of The Heat Exchanger.

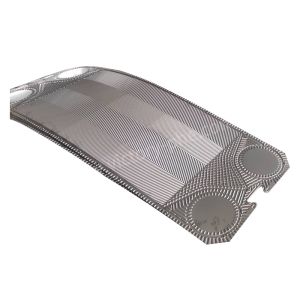

Heat Exchanger Plates
Plate heat exchanger plates are essential components in plate heat
exchangers, playing a vital role in enabling efficient heat
transfer and facilitating the separation of different media. These
plates undergo a meticulous manufacturing process, involving the
pressing of corrugated metal sheets with sealing grooves and corner
holes, which is crucial for achieving effective heat transfer. The
corrugations not only improve heat transfer efficiency but also
strengthen the structural integrity of the plates, enhancing the
pressure resistance of the plate heat exchanger. Additionally, the
presence of these corrugations promotes turbulent flow, reducing
the accumulation of deposits or fouling and providing a certain
level of self-cleaning capability.
| Brand | Model |
| M3,M6,M6-D,M6M,M6MC,M10B,M10M,M15B,M15M,M15MC,M20M M20B,MX25B,MX25M,M30,TS6,TL6B,TS20,TL10B,TL10P,T20B,T20M, T20P,TL35B,P16,P26,P36,AK20,JWP26,JWP36,M6MW,M10BW,MK15BW |
| Material | Specification |
| Stainless Steel | SUS304 316 316L 310S 904 |
| Titanium and titanium-palladium alloy | TAi TAi-Pd |
| Hastelloy | C276 D205 B2G |
| Nickel | Ni200 Ni201 |
| Molybdenum | 254 |
These products are specifically designed to cater to the needs and
specifications of a wide range of manufacturers, including but not
limited to , ACCESSEN, GEA (Kelvion), APV, Sondex, Tranter, Hisaka,
API, Funke, Vicarb, Mueller, SWEP, Fischer, AGC, Thermalwave, ITT,
LHE, and DHP, among others.
Applacations
| Plate material | Suitable for fluids |
| Stainless steel (SUS304.316, etc.) | Purified water, river water, edible oil, mineral oil |
| Titanium and titanium palladium (Ti, Ti-Pd) | Sea water, salt water, salt compounds |
| 20Cr,18Ni,6Mo(254SMO) | Dilute sulfuric acid, dilute salt aqueous solution, inorganic
aqueous solution |
| Nickel (Ni) | High temperature, high concentration caustic soda |
| HASTELLOY alloy (C276, D205, B2G) | Concentrated sulfuric acid, hydrochloric acid, phosphoric acid
|
Plate heat exchanger plate thickness configuration
- Typically, AISI 304 stainless steel plates have a thickness of 0.4
or 0.5 mm
- AISI 316 stainless steel plates consistently measure 0.5 and 0.6 mm
in thickness
- Plates made of 254 SMO, a high-alloy material, usually have a
thickness of 0.6 mm
- Titanium plates are uniformly 0.5 and 0.6 mm thick
- Thicker plates are employed for high-pressure applications
- Some plate heat exchangers (PHEs) utilize 0.4 mm plates for
low-pressure operations
- Hastelloy C-276 plates, composed of a nickel alloy, typically
exhibit a thickness of 0.6 mm
