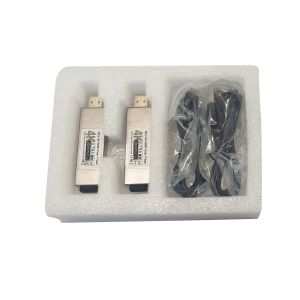

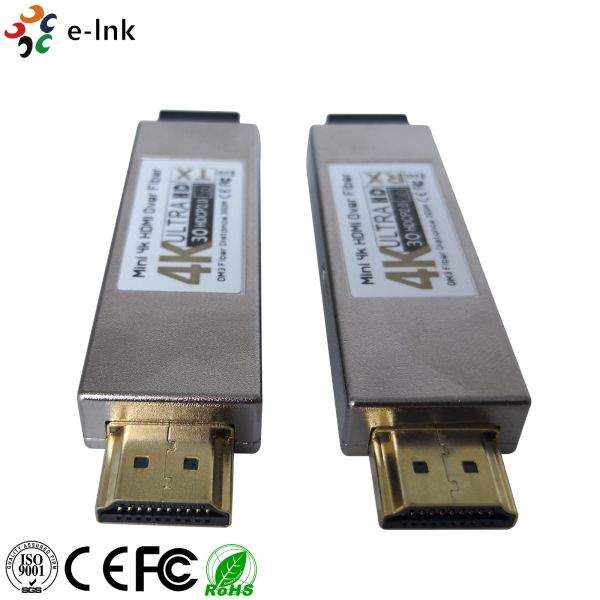

Mini 4K HDMI Optical Transceiver
HDMI Fiber Extender
HDMI 1.4a and HCCP1.2 Support
Uncompressed transmission,No delay,No losses
DDC CEC HPD Signal Support
Supports up to 300m Transmission Distance at up to 10.3Gbps with
OM3
Multimode Fiber (850nm)
Supports All Modes up to 4K*2K@30Hz Resolution
Standard HDMI Connector
Integrated USB Connector for Power
Hot-Pluggable, EMI/RFI Resistant
Miniature form factor for ease of use and installation
850nm VCSEL and PIN Photodetector
Video over (2) multimode fibers
Typical Power Dissipation 1420 mW (Source), 1220 mW (Sink)
Operating Case Temperature: 0~70°C
| Type of Extender | Fiber Transmitter for HDMI signal over Optical Fiber Cable |
| Input Signals | HDMI |
| Signal Support | HDMI 1.4a HDMI format standard and HDCP compliant |
| Video Support | 1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz |
| Audio Support | Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD,
DTS-HD-HRA, DTS-HD Master, (PCM-2CH) |
| Website Specifications | Color space 444, 420, 400 |
| Dynamic EDID | Plug & Play, no need to learn |
| Fiber Connector | Double LC Receptacle |
| Transmission Distance | Multi Mode, up to 984ft (300M) |
| Operating Temperature | 0°C to + 50°C |
| Storage Temperature | -20°C to + 85°C |
| Humidity | to 90% RH (non-condensing) |
| Safety Approvals | CE, RoHS |
| Dimension (WxDxH) | 3.15 x 0.79 x 0.35 in (80x20x9mm) |
| Weight | 0.1 kg / 0.22 lb |
| Operation Voltage | 5VDC |
| Power Supply | Power Input +5VDC, 0.85A (Universal Type 50/60Hz, 100~240VAC) |
Ordering Information
| Item | Description |
|
| LNK-106M | Mini HDMI Optical Transceiver: 1-Ch HDMI 1.4a Video Signal(4K*2K),
OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1
receiver, used by pairs, USB Power Input |
