Mini HDMI Over CAT5/CAT6 Extender with IR - 165ft (50m)
Model:LNK-MHDE-P50
Overview

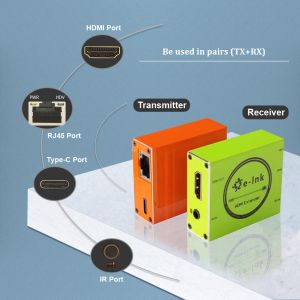

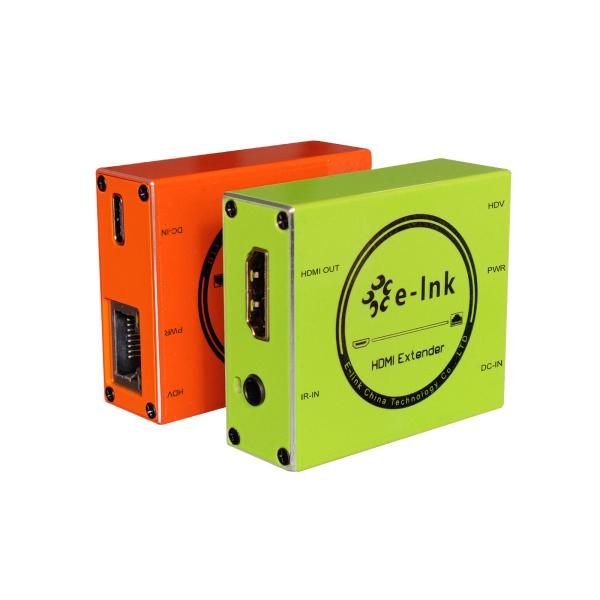

The LNK-MHDE-P50 Mini HDMI Extender is a pair of devices, including
a transmitter unit (TX) and a receiver
unit (RX). It enables full HD 1080p@60Hz HDMI signal transmission
and extension over CAT5e/6 UTP network cables,
supporting distances of up to 50 meters. With a point-to-point
setup, it ensures stable signal transmission,
and its built-in EDID significantly enhances device compatibility.
This extender is ideal for AV transmission in various applications,
such as HD conference systems,
HD video production, HD multimedia education systems, and HD
digital advertising or signage.
Offering long transmission distances, cost-effective operation,
easy installation, and excellent compatibility,
it provides a reliable and efficient solution for HDMI signal
transmission.
Features
► Aluminum shell with an ultra-compact and slim design, offering a
sleek appearance
and strong anti-interference capabilities.
► Delivers uncompressed signal transmission with zero latency.
► Automatically adjusts to match the cable length.
► Supports resolutions up to 1080p@60Hz.
► Extends HDMI signals over a single UTP CAT6/6a/7 cable up to 50
meters.
► Features EDID pass-through for enhanced compatibility.
► Supports IR signal transmission.
► Equipped with a USB-C power input, supporting 5~12V DC.
Technical Indexes
| Parameter | Description |
| Video | Standards | HDMI 1.4; HDCP 1.3 |
| Maximum pixel clock | 165MHz |
| Maximum data rate | 6.75Gbps |
| Resolution | Max: 1920X1080@60Hz |
| Connector | HDMI-A |
| Impedance | 100Ω |
| IR | Interface | 3.5mm earphone seat |
| Signal direction | Unidirectional |
| Signal type | Digital |
| IR frequency | 38kHz |
| Ethernet | Interface | RJ45(568B) |
| Transmission distance | 720P, UTP CAT6---80m |
| Transmission distance | 1080P, UTP CAT6---50m |
| Other | Power supply | DC 5~12V |
| Power dissipation | MAX 3W |
| Temperature | Operating: -5℃ ~ +50℃ |
| Humidity | Operating: 5% ~ 90% |
| Dimension | 51x45x18mm |
| Housing Material | Aluminum |
| The warranty | 1 year warranty |
Application
ordering information
| Model | Description of product |
| LNK-MHDE-P50 | HDMI Over CAT5/CAT6 Extender with IR - 165 ft (50m), including 1
Transmitter & 1 Receiver, used by pairs |
