Outer rotor motor-W6430
The outer rotor motor is an efficient and reliable electric motor
widely used in industrial production and household appliances. Its
core principle is to place the rotor outside the motor. It uses an
advanced outer rotor design to make the motor more stable and
efficient during operation. The outer rotor motor has a compact
structure and high power density, allowing it to provide greater
power output in a limited space. It also has low noise, low
vibration and low energy consumption, making it perform well in a
variety of application scenarios.
External rotor motors are widely used in wind power generation, air
conditioning systems, industrial machinery, electric vehicles and
other fields. Its efficient and reliable performance makes it an
indispensable part of various equipment and systems.
PRODUCT DETAILS
Production introduction
The design of the outer rotor motor uses advanced materials and
manufacturing processes to ensure its high quality and long life.
It usually uses permanent magnet synchronous motor technology,
which has high efficiency and precise control capabilities, and can
meet various complex industrial needs. At the same time, the outer
rotor motor also has good thermal characteristics and high
temperature resistance, and is suitable for long-term operation in
high temperature environments.
In general, outer rotor motors have become the preferred motor in
various application scenarios due to their high efficiency,
reliability and stability. Its advanced design and superior
performance make it widely used in industrial production and
household appliances. With the continuous advancement of technology
and the growth of market demand, outer rotor motors will play an
increasingly important role in future development.
General Specification:
- Operating Voltage: 40VDC
- No-load Performance: 12000RPM/5.5A
- Load Performance: 10500RPM/30A
- Rotation Direction: CW
- Core Material: SUS420J2
- Core Hardness: 50-55HRC
- High Post Test: AC500V(50HZ)/5mA/SEC
- Insulation Resistance:10MΩ/500V/1SEC
Application:
Compressor, inverter motor, electrical bike and etc.

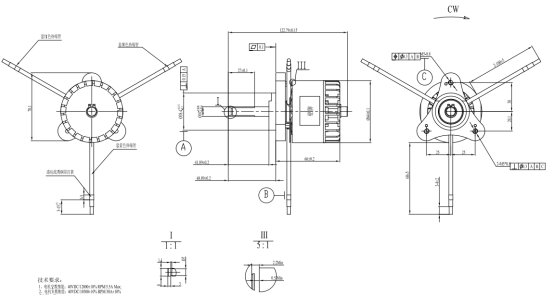

Dimension:
Parameters
| Items | Unit | Model |
| W6430 |
| Rated voltage | V | 40(DC) |
| No-load speed | RPM | 12000 |
| Rated Speed | RPM | 10500 |
| Rotation Direction | / | CW |
| Core Hardness | HRC | 50-55 |
| Core Material | / | SUS420J2 |
| Insulation resistance | MΩ Min/V | 10/500 |
| High Post Test | V/mA/SEC | 500(50HZ)/5 |
FAQ
1. What are your prices?
Our prices are subject to specification depending on technical
requirements. We will make offer we clearly understand your working
condition and technical requirements.
2.Do you have a minimum order quantity?
Yes, we require all international orders to have an ongoing minimum
order quantity. Normally 1000PCS, however we also accept the custom
made order with smaller quantity with higher expense.
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of
Analysis / Conformance; Insurance; Origin, and other export
documents where required.
4.What is the average lead time?
For samples, the lead time is about 14 days. For mass production,
the lead time is 30~45 days after receiving the deposit payment.
The lead times become effective when (1) we have received your
deposit, and (2) we have your final approval for your products. If
our lead times do not work with your deadline, please go over your
requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or
PayPal: 30% deposit in advance, 70% balance before shipment.
