Industrial Automation Capsule Slip Rings 8 Circuits 2.5A 24.5mm Lead Length

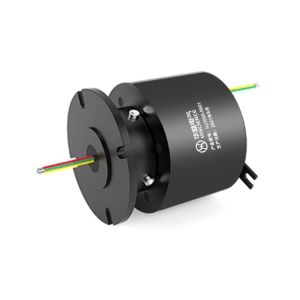

Capsule Slip Rings 8 Circuits 2.5A

Product Description:

Features:

• Eight Circuits: The Capsule slip rings features eight Circuits, providing multiple pathways for the transmission of signals and power.

• 2.5A Rated Current: With a rated current of 2.5A per circuit, this slip ring can handle a higher electrical load, ensuring reliable power transmission.

• Compatibility: The slip ring is compatible with various communication protocols and can seamlessly integrate into different systems and equipment.

Typical Application:

• Robotics:Capsule slip rings are commonly used in robotics applications to enable continuous rotation while maintaining reliable signal and power transmission between stationary and rotating components.

• Packaging Machinery:Capsule slip rings find applications in packaging machinery, allowing for the transmission of signals and power between stationary parts and rotating components such as conveyors, or rotary arms.

• Industrial Automation: Capsule slip rings play a vital role in industrial automation systems, facilitating the transmission of signals and power between stationary control systems and rotating machinery, such as motors, sensors, or actuators.

Specifications:

Drwing for HC24508-B01:

FAQ:

What is a Capsule slip ring?

A Capsule slip rings is a device used to transmit electrical signals and power between a stationary part and a rotating part of a system. It consists of a rotating ring assembly and a stationary brush assembly enclosed within a protective cap.

How does a Capsule slip ring work?

The Capsule slip ring works by establishing electrical connections between the rotating and stationary components through sliding contacts. The rotating ring assembly is connected to the rotating part, while the stationary brush assembly is connected to the stationary part. As the rotating part moves, the sliding contacts maintain continuous electrical connectivity.

What are the main advantages of Capsule slip ring?

The advantages of Capsule slip ring include:

Continuous electrical transmission during rotational movement.

Compact design with a protective cap for improved durability.

Suitable for transmitting signals and power simultaneously.

Low electrical noise and signal loss.

Easy installation and maintenance.

Shenzhen Hiscience, linking the future of technology

Shenzhen Hiscience Co., Ltd. (abbreviation: Hiscience) was established in 2011.

It is a professional slip ring manufacturer integrating independent research and development, production and sales. It is the only R&D department in the domestic slip ring industry composed of senior R&D teams in the three major fields of laser technology, communication industry and microwave devices. It is accurate, efficient and quick to respond to customers. meet customer needs with customized products and services.

The company's products strictly control the quality from design to mass production, and have a complete testing system. At the same time, a simulation testing platform is built according to different customer needs to ensure product consistency and reliability. The products win the trust of customers with their high quality and are widely used in civil and military fields such as engineering machinery, automation equipment, intelligent manufacturing, medical instruments, new energy wind power generation, aerospace, navigation and ships, security monitoring and so on.
