    5 Ton Payloader LW500FN With WEICHAI Engine Mechanical Operation

    Ask Lasest Price
    Brand Name :
    Model Number : LW500FN
    Certification : CE/ISO9001
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 1000 units per month
    Delivery Time : 7-10 days
    • Product Details
    • Company Profile

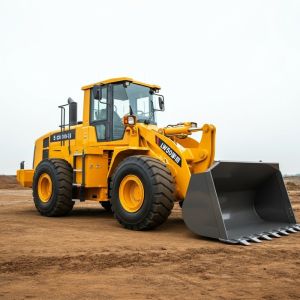

    5 Ton Payloader LW500FN With WEICHAI Engine Mechanical Operation

    5 Ton LW500FN WEICHAI Engine Tyres 23.5-25 Mechanical Operation Wheel Loader


    Description:

    ·Sealed with special materials, resistant to low temperature and pressure; International brand hoses and joints have long life and no leakage.
    ·Comprehensive application of dust masks, the cleanliness of the system is significantly improved, the service life of each component is extended, and the reliability is increased by more than 10%.
    · work hard
    ·Strength: Optimized hydraulic system, stronger traction and improved adaptability to working conditions.
    ·Small and medium wheelbase design, small turning radius, good site adaptability and strong working stability.
    ·Optimizing the power transmission system, the driving speed is higher, and the overall operating efficiency is increased by more than 15% compared with traditional models.
    · More significant energy saving
    ·Energy-saving low-speed engine, patented technology, high-efficiency and large-capacity torque converter, special gearbox, with remarkable energy-saving effect.
    ·Using a new type of fuse box, the whole machine is controlled centrally, and the troubleshooting is convenient and quick.


    Product Paramenters

    DescriptionUnitParameter value
    Rated operating loadkg5000
    Bucket capacity2.5~4.5
    Machine weightkg16900
    Dump clearance at maximum liftmm3150~3560
    Reach at maximum liftmm1100~1190
    Wheel basemm2960
    Treadmm2250
    Height of hinge at maximum lift heightmm4112
    Working height (fully lifted)mm5510
    Max. breakout forcekN170
    Hydraulic cycle time-raises≤6
    Total hydraulic cycle times≤10.5
    Min. turning radius over tyresmm5950
    Articulation angle°35
    Gradeability°28
    Tyre size23.5-25-16PR
    Overall machine dimension L×W×Hmm7910×3016×3515
    ModelWD10G220E21
    Rated PowerkW162
    Fuel TankL250
    Hydraulic TankL210
    Travel SpeedⅠ-gear(F/R)km/h13/18
    Ⅱ-gear(F/R)km/h40

    Product Show
