WR15 BJ620 To 1.85mm Female Right Angle Waveguide To Coax Adapter 49.8GHz~70GHz 1.85-BJ620-KF

WR15 BJ620 To 1.85mm Female Right Angle Waveguide To Coax Adapter 49.8GHz~70GHz

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP,SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.

Specification of 1.85/BJ620-KF:

Product Name	WR15 Waveguide to 1.85mm Coaxial Adapters-Right Angle Type
Model No.	1.85/BJ620-KF
Coaxial type	1.85mm
Waveguide Size	WR15 (BJ620)
Body Style	Right Angle
Frequency Range	49.8-70GHz
SMA Impedance	50 Ohm
VSWR	1.4

Advantages:

-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

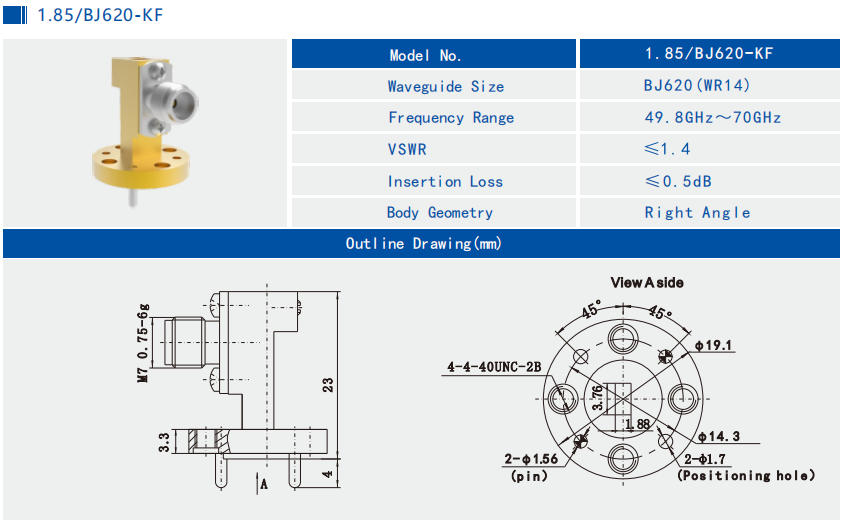

Outline Drawing and Pictures of WR15 BJ620 to 1.85mm Female Waveguide to Coax Adapter 1.85/BJ620-KF:

List of Waveguide to 1.85mm Coaxial Adapters:

Model Number	Description	Note
1.85/BJ500-KF4	WR19(BJ500) to 1.85mm female right angle adapters
1.85/BJ500-KFE1	WR19(BJ500) to 1.85mm female end launch adapters	BJ500=WR19
1.85/BJ620-KF	WR15(BJ620) to 1.85mm female right angle adapters	BJ620=WR15
1.85/BJ620-KFE	WR15(BJ620) to 1.85mm female end launch adapters
Custom Type	Customized sizes are acceptable

Cross-references of waveguide Standard

Chinese Standard	International Standard	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR19	39.2~59.6
BJ620	WR15	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112
