Description:

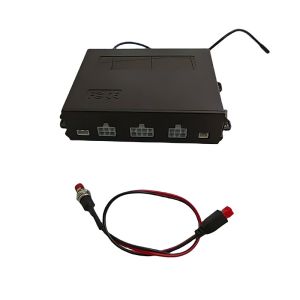

Linear Actuators Sync controller
LS-RSK-H1 linear actuator control box can synchronize two Hall
electic actuators 100% under any situation. It with overcurrent
loading protection, the system will stop working immediately in
case the actuators overloading actuated the overcurrent protection.
In this situation, the actuators only can be moving in opposite;
after overloading removed, the system will recover automatic. It
compatible with 12V~28V DC power supply and dual operation (wired
switch & Wireless remote control )are available.
Features:
- Two in one box. Synchronize two Hall linear actuators travling in
any sitatuion
- Plug and play. Connect the device and reset it, then you can let it
move up/down freely
- Dual operation. Wireless control and wired control both are
available
- Built-in safety protection. Stop immediately to protect the device
when any actuators run overcurrent/overload.
Specification:
| Name | 2 Hall effect linear actuator controller |
| Voltage | 12V~28VDC |
| Max. current | 16.5A |
| Remote range | 50 meters |
| Working temperature | -30~80℃ |
| Certification | CE, FCC by SGS |
| Remote control option | Momentary / Non-momentary |
| Learning code | Programmable |
| Warranty | One year |
| Package including | 1* controller, 1* wired switich, 2* remote control, 1*power cable |
Application:
Adjustable desk
window auto opener,
Car lid auto cover,
Height adjustable platform
