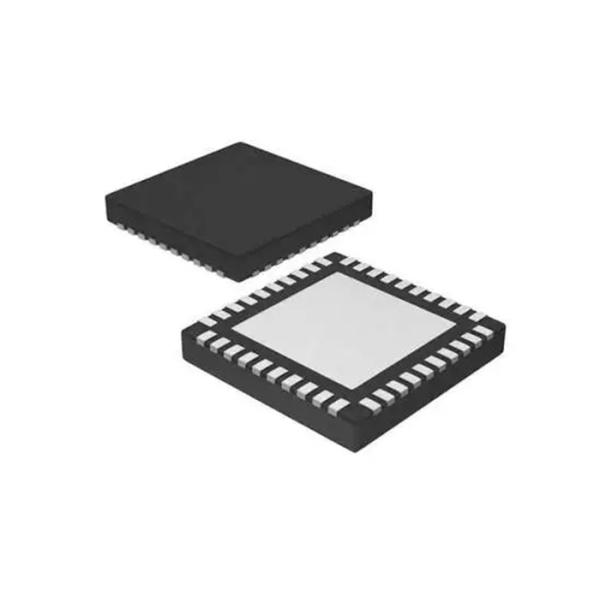

    Ethernet IC YT8510C Single-port Distance Enhanced 100M Ethernet PHY Layer Chip

    Ask Lasest Price
    Brand Name : Original Factory
    Model Number : YT8510C
    Certification : Lead free / RoHS Compliant
    Price : Contact for Sample
    Payment Terms : T/T, L/C, Western Union
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Ethernet IC YT8510C Single-port Distance Enhanced 100M Ethernet PHY Layer Chip

    Ethernet IC YT8510C Single-port Distance Enhanced 100M Ethernet PHY Layer Chip


    Product Description Of YT8510C

    YT8510C is an Ethernet physical layer transceiver (PHY) that complies with the IEEE 100BASE-TX/10BASE-Te and LRE100-1/LRE10-1 standards. Widely used in enterprise applications, the YT8510 is manufactured in a standard digital CMOS process and contains all the active circuitry to implement the physical layer functionality for transmitting and receiving data over CAT5 unshielded twisted pair (UTP) cable.


    Feature Of YT8510C

    • Support for the following interfaces via twisted-pair or coaxial cable

    • 100Mbps long range ethernet (Reach over 300 meters via one pair ofCAT5E twisted-pair cable)

    • 10Mbps long range ethernet.(Reach over 800 meters via one pair of CAT5E twisted-pair cable)

    • Support IEEE auto-negotiation and LDS (link discover signaling) on twited-pair cable.

    • Support LDS and LREI 00/10-1 on coaxial cable

    • Support auto cable detection and speedselection.

    • MII/RMII/RGMII support

    • RMII/RGMII interface EMI enhancement

    • Support latency accommodation of RGMII clock

    • Support IEE 802. 1AS

    • Support POE function

    • Integrated LDO regulator alwing a single 33V power supply

    • Internal, extermal and remote loopback mode for diagnosis

    • Jumbo frame support up to 16 kB

    • Polarity detcction and auto/manual corretion

    • Integrated twisted-pair termination resistors

    • Trace matched output impedance

    • Integrated low-pass fiter

    • Robust cable ESD tolerance

    • Package QFN 40, 6x6mm


    Application Of YT8510C

    • General Embedded Applications

    • Video Surveillance

    • Industrial Control

    • Factory Automation


    Other Electronic Components In Stock

    Part Number

    Package

    YT8010AS

    QFN36

    YT8010A

    QFN36

    SZ18201

    QFN32

    YT8521SC

    QFN48

    YT8510H

    QFN36

    YT8512H

    QFN32

    YT8511H

    QFN40

    YT8521SH

    QFN48

    YT8531H

    QFN40

    YT8614H

    LQFP-176

    YT8618H

    LQFP-128

    YT8614QH

    QFN-88

    YT9215S

    LQFP-128

    YT9215RB

    LQFP-128

    YT9215SC

    LQFP-128

    YT8531DH

    QFN40

    YT8531SH

    QFN48

    YT8821H

    QFN48

    YT8614C

    LQFP-176

    YT8618C

    LQFP-128

    YT8614QC

    QFN-88

    YT8510C

    QFN40

    YT8512C

    QFN32

    YT8522C

    QFN32

    YT8522H

    QFN32

    YT8522A

    QFN32

    YT8522E

    QFN32

    YT8511C

    QFN40

    YT8521SH-CA

    QFN48

    YT8521SC-CA

    QFN48
