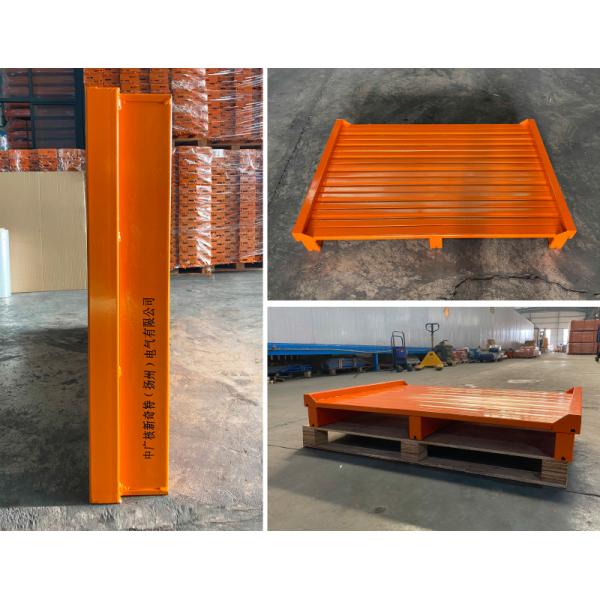

Steel Pallets For AS/RS
——
Customized Steel Pallets
— Factory Direct Sales · Customizable —
This steel pallets are specifically designed for ASRA. Due to the
high requirements for the various equipment operating in the ASRS,
ASRS pallets have higher requirements in accuracy, dimensional
tolerance, deflection, uniformity, and other aspects compared to
ordinary steel pallets. The ASRS pallets is usually a four-way
fork, which can more flexibly adapt to equipment such as stackers.
Its legs are usually welded with grooves to prevent barcodes.
Our company has always insisted on the road of "science and
technology will prosper the enterprise", and constantly introduced
international advanced production equipment. At present, we have 2
automatic welding production lines with robotic arms for standing
pallets and 1 semi-automatic welding production line with robotic
arms for steel bins. At the same time, our company highly focuses
on the development of independent intellectual property rights,
improve production capacity, has developed into one of the most
professional manufacturers of steel pallets, vertical storage
pallets.
STRUCTURE
—
- Leg blockage: Strengthening the overall load-bearing capacity of the pallet is
beneficial for forklift operation.
- Tray feet: They are the most important load-bearing component of the tray,
providing a solid and sturdy guarantee.
- Protective square tubes: There are two square tubes at both ends of the fork direction to
reduce damage to the tray due to frequent operations.
- Edge banding: Edge banding enhances the protection of the panel and reduces
damage.
Steel Pallet · ASRS · Made In China
Common types of steel pallets
—
- Classified by the direction of steel pallet forking: double-sided
forking (also known as double-sided forking), four-sided forking
(also known as four point forking)
- Classified by the arrangement of steel tray panels: semi laid (also
known as missed laying), fully laid (also known as fully laid)
trays
- Classification by surface treatment of steel pallets: spray
coating, galvanizing, etc
Plastic Spray Steel Pallet / Galvanized Steel Pallet
Half laid steel Pallet: there are gaps between the panels
Full laid steel Pallet: The board surface is tightly arranged
without gaps
Colored zinc steel Steel Pallet / Double sided steel Pallet
| Entry | Two sided fork | Four sided fork |
| Clearance fork height | 100m | 100m |
| Normal height | 125mm | 150mm |
| Regular size | 1200mmx1000mm,1200mmx1200mm,1000mmx1200mm,1100mm x1100mm
10000x1000mm |
Size, color, thicknessall can customized bycustomer requirement.
CASE
—
Steel Pallet · ASRS · Made In China
Steel Pallet · ASRS · Made In China
Steel Pallet · ASRS · Made In China
Steel Pallet · ASRS · Made In China
FACTORY SCENE
—
Ensure the quality of Huayide racking products
—
| 1 | The raw material of the shelf is customized from China's large
steel group of high quality carbon steel, durable and strong, to
ensure the quality of the product from the source. |
| 2 | The shelf welding adopts dioxygen protection welding, the welding
joint has good cracking resistance, small welding deformation,
beautiful forming, and does not need slag cleaning. |
| 3 | Each column and beam of the shelf are designed by professional
personnel with professional technology and cut by professional
equipment, so as to ensure the accurate size of the shelf. |
| 4 | Professional spray before treatment, oil removal, rust removal,
phosphating, powder, and then in high temperature oven baking
molding, wear-resistant, rust proof. |
