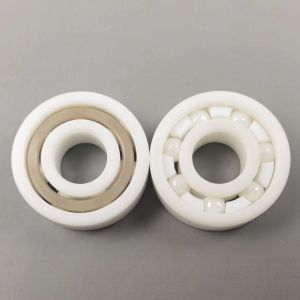

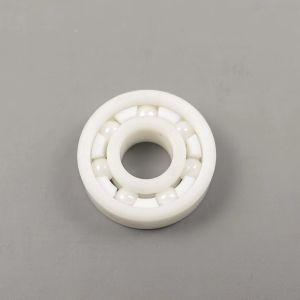

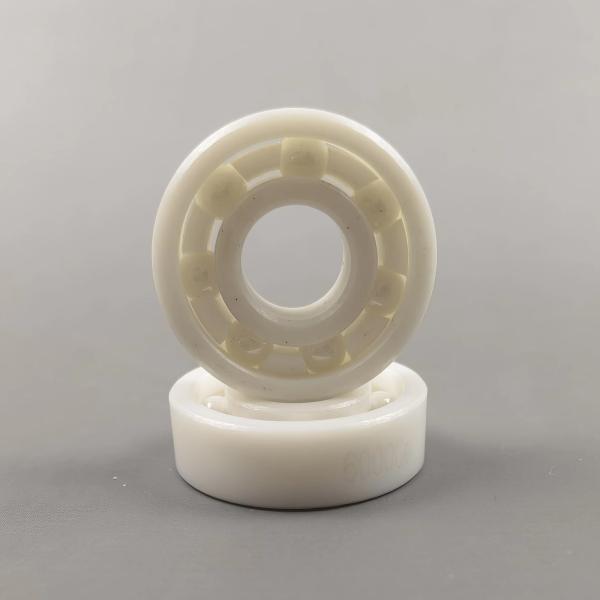

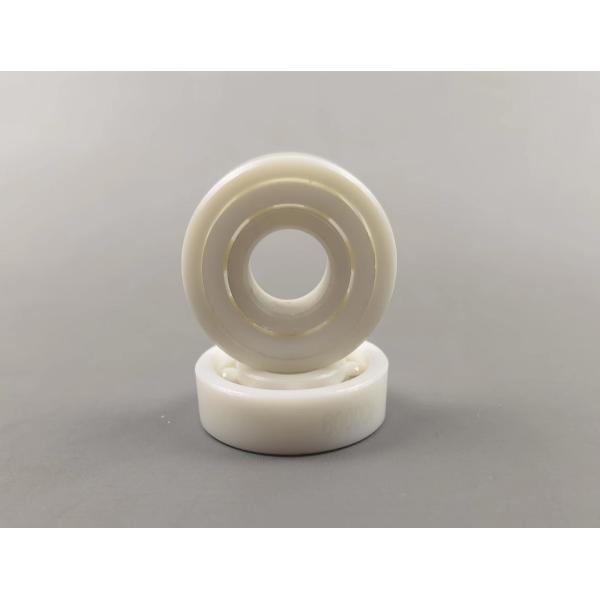

6000 Zr Zirconia Bearing Zirconium Caged P6 ABEC 3

Zirconia Bearing 6000Ce Fitted with Cage Of P6/ABEC3 Precision

Description of Zirconia Bearing 6000 (Zirconia+) :

1. ZrO2 races and balls: Races are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by HIP (Hot Isostatic Pressure) sintering technology. The races are assembled with after HIP processed zirconia balls in size of 4.763mm.

2. cage: has excellent chemical stability, corrosion resistance (is one of the best corrosion resistance materials in the world today,) can resistant to molten metal sodium and liquid fluorine, to all kinds of acid and alkali resistance and organic solvent, with sealing, high lubrication, non-viscosity, electrical insulation and good anti-aging endurance, excellent temperature resistance (can work in +250℃ to -180℃ temperature for a long time). So the cage and seals of this material fitted in bearings can be used in many special working condition.

Performance advantages of Zirconia Bearing 6000 (Zirconia+) :

Zirconia bearings have a density and linear expansion coefficient close to that of metal steel shafts, high hardness HV1280, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings.

Application of Zirconia Bearing 6000 (Zirconia+) :

Because of the outstanding porperties of zirconia and , the ZrO2 bearings are suitable for certain vibration and mild impact environment, such as chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.

  Beijing Zhongxing Shiqiang Ceramic Bearing Co., Ltd., founded in 2005, situated in No. A38 Weishanzhuang Industry District, Daxing District ,Beijing, is the first company in China to invent and manufacture rare-earth ceramic bearings. The rare-earth ceramic bearings have characteristics of strong resistance against all kinds of acid, alkali, salt and other corrosive medium erosion, high temperature resistance, wear-resistant, dimensional stability at high temperature, etc. They can be used in worse lubrication working condition with a long operating life, thus it is a new kind of high-tech products material, with great social and economic value.

  Besides, the founder of the company started theoretical research and process development on ceramic bearings as early as 1982, and obtained two national invention patents in 1992/1994 (Patent No. ZL92114993X for rare-earth ceramic bearings and Patent No. ZL94106294.S for ceramic ball processing technology).

  At present, our company mainly produces ceramic bearings, sliding bearings, ceramic balls and ceramic industrial parts. The production materials are high performance ceramic materials, mainly SSIC, Si3N4, ZrO2, Al2O3.

  The advantage of our company is that we have specialized production line for high precision ceramic balls, and we can produce customized GPS (Gas Pressure Sintering) and HIP (Hot Temperature Isostatic Pressing) sintered Si3N4 balls and ZrO2 balls. The quality of our products is equivalent to ASTM F2094 F2094M-08 standard class I and II materials, and the precision grade reaches international standard G3, G5, G10 ceramic bearing balls, etc. Please note that the most of equipment used in our production and testing process are from Mitsutoyo Japan, and the hot isostatic sintering furnace is from ABB Sweden, therefore, the quality of our products is absolutely superior. And we are confident that you will be satisfied with our products.

  In 2017, Liaoning Zhongxing Shiqiang New Material Co.,Ltd., was founded, situated in 571 Jianshe Road, Jingkai District, Anshan City, Liaoning Province. The company mainly produces sliding bearings as well as pump accessories. And the pump accessories are mainly sold in domestic famous pump manufactures.

  In 2020, Zhongxing Shiqiang Technology (Tianjin) Co., Ltd., was founded, situated in No.41 Guangyuan Road, Wuqing District, Tianjin. The company mainly produces rolling bearings as well as ceramic balls, and its productions are competitive in the international market.
