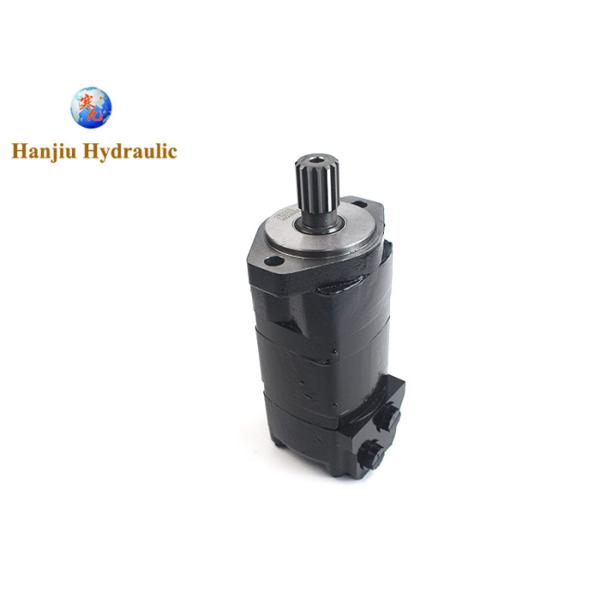

    104-1035-006 Hydraulic Geroler Motor 18.7cu In/rev 2 Bolt SAE A Flange 1 1/4 Inch - 14 T Splined Shaft

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : BMK2-315-E2-FE-SU
    Certification : CE
    Price : 90 USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, Payple
    Supply Ability : 10000 pieces per year
    Delivery Time : 35 - 45 work days
    • Product Details
    • Company Profile

    104-1035-006 Hydraulic Geroler Motor 18.7cu In/rev 2 Bolt SAE A Flange 1 1/4 Inch - 14 T Splined Shaft

    104-1035-006 Hydraulic Geroler Motor 18.7cu in/rev. 2 Bolt SAE A Flange,1 1/4 Inch - 14 T Splined shaft


    Quick review:

    Model No.: BMK2-315-E2-FE-SU= 104-1035-006


    displacement315ml/r
    speed246 - 365 rpm
    torque765 - 885 nm
    mounting
    2 Bolt SAE A Flange
    shaft
    1 1/4 Inch - 14 T Splined

    Main specifiction:


    Main Specifications:
    TypeBMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2BMK2
    6580100125160200250315400475
    Geometric displacement
    (cm3 /rev.)
    6580100.9129.8156.8193.4242.5304.3390.8485
    Max. speed (rpm)cont.835800742576477385308246191153
    int.990980924720713577462365287230
    Max. torque (N·m)cont.185235295385455540660765775845
    int.245345445560570665820885925930
    Max. pressure drop (MPa)cont.20.521212120.520.520.52115.512
    int.27.5313131262626241714
    peak313131313131313120.517
    Max. flow (L/min)cont.55657575757575757575
    int.65809595115115115115115115
    Weight (kg)9.29.49.71010.210.51111.51212.4
    * Continuous pressure :Max. value of operating motor continuously.
    * Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
    * Peak pressure:Max. value of operating motor in 0.6 second per minute.


    More BMK2 motor, BMK2 - Orbital Motor (Displacement 65 – 500 CC) available:



    About Hanjiu:

    Hanjiu company, as a local manufacturing enterprise in China, provides a large number of merchants with motor components from Hanjiu factory, because foreign parts prices are generally higher and the transportation time is long, and users in China choose Hanjiu's advantage in avoiding the time and parts loss from overseas distances, and if you are a foreign customer, don't worry, Hanjiu has rich experience in selling abroad. We have cooperation with Southeast Asia, the Middle East, South America, North America, Northern Europe, Africa, India and other countries and regions, Hanjiu provides customers with better service, the more parts you order, the higher the discount we will give. In terms of cost performance, Hanjiu will be your best choice!
