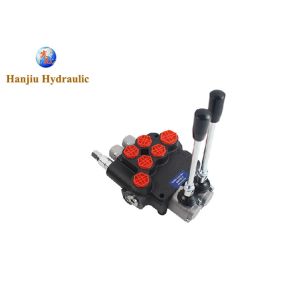

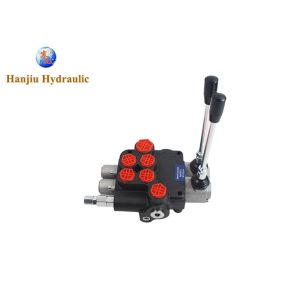

    P80 Two Bank 2P80 A1GKZ1 Manual Hydraulic Directional Control Valves

    Ask Lasest Price
    Brand Name : HANJIU
    Model Number : 2P80 series
    Certification : CE
    Price : Contact the seller to get a quote
    Payment Terms : L/C, T/T, Western Union, Western Union
    Supply Ability : 300000 sets per year
    Delivery Time : 25 - 35 work days
    • Product Details
    • Company Profile

    P80 Two Bank 2P80 A1GKZ1 Manual Hydraulic Directional Control Valves


    P80 TWO BANK 2P80 A1GKZ1 MANUAL HYDRAULIC DIRECTIONAL CONTROL VALVES


    It can be used for agricultural machinery, tractors, sprayers, turners, HDS loaders, construction machinery, loaders, ambulances, car transporters, excavators, sweepers, industrial and construction machinery, forestry, horticulture and other fields.


    The distributor is equipped with a safety valve. They have a dust-, water- and oil-resistant sealing rubber cover.



    flow rate80 liters
    number of spools2spools
    inlet section valveside inlet, with relief valve
    relief valve set pressure100-315bar
    inlet port sizeG3/8,G1/2, G3/4
    spool type3 positon, double acting
    handle side arrangementstandard handle
    spool cap side arrangement3position, spring return,manual control,detent control,
    working section arrangementstandard type
    work port sizeG3/8,G1/2,G4/3,G1
    outlet section typetop outlet,side
    outlet port sizeG3/8,G1/2,G4/3,G1

    The distributor has a neutral (middle) position and two working positions (up and down).

    When released, the lever will automatically return to the neutral (0) position

    – 0. neutral position – the oil is directed to the overflow

    – In the case of working position 1 – oil flow – gear, the piston rod extends.

    – 2nd working position – oil flow – the piston rod retracts at the cylinder.
