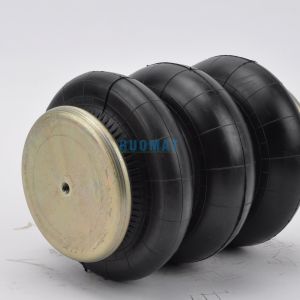

Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer

    Buy cheap Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer from wholesalers

    Buy cheap Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer from wholesalers
    • Buy cheap Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer from wholesalers
    • Buy cheap Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer from wholesalers
    • Buy cheap Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer from wholesalers
    • Buy cheap Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer from wholesalers
    • Buy cheap Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer from wholesalers
    • Buy cheap Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer from wholesalers

    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3B5180
    Certification : ISO/TS16949:2009
    Price : USD69.9-79.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer

    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet For Auto Parts Trailer


    Product Information

    ItemAir Spring/Shock Absorber Spring/Air Bellows
    BrandGuomat/Neutral
    MaterialRubber And Steel
    Warranty1 Year
    MOQ1 PCS If We Have Stock

    Package

    (1) Bubble Bag And Brown Carton

    (2) Customer Require Packaging

    (3) Normal Exported Package

    Delivery Time2-8 Working Days
    PaymentT/T, L/C, PayPal, Western Union
    After Service(1) Examination Before Shipment
    (2) Follow Up The Customers' Feedback
    Main products we sellAir Spring,Convoluted Air Spring,Industrial Air Springs,Air Suspension Spring,Air Compressor,Air Valve,Bus Rubber Bellows,Truck & Trailer Air Bags,Cabin Air Shock,Electric Water Pump

    About Product Technical Data

    Top Cover Plate Diameter:132mm

    Bottom Cover Diameter:132mm

    Screw Center Distance of Top Cover Plate:70mm

    Screw and Air Inlet Distance of Top Cover Plate:33mm

    Top Cover Plate Screw(Nut) Tooth:2X3/8-16UNC

    Bottom Cover Plate Screw(Nut)Tooth:3/8-16UNC

    Gas Hole/Air inlet:1/2NPT


    About Air Spring

    Air springs can reduce your costs and increase your profits. Last at least twice, and as much as four times longer than steel springs Require little or no maintenance Increase life of tires and brake linings Substantially reduce breakage and maintenance of other vehicle components, including electrical, air conditioning, cab mounts, exhaust, chassis, seals, wiring and drive train Let you haul anything; eliminate expensive deadheading runs Reduce driver discomfort and dangerous fatigue; improve driver safety, productivity and loyalty Allow perfect load equalization between axles; let you run at the maximum legal limit Provide smoother ride for payload, reducing costly insurance claims and the expense of overpackaging Pay you back at trade-in time; trucks and trailers with air suspensions are worth more 100% of all air spring assemblies are pressure tested before they leave Fire-stones factory. Fire-stone is the original designer of composite pistons. Fire-stone rubber compounds have superior 'flex' range through temperatures of -65 F to 135 F. Air Spring Components Inside the World's No. 1 Air Spring: Airide springs are available in single, double and triple convolution types plus reversible sleeve models for virtually every conceivable heavy-duty vehicle suspension application.

    1) Stud - Manufactured as a permanent part of the bead plate assembly for maximum strength and durability. Used to attach the spring to the vehicle's suspension.

    2) Combo Stud - Serves the dual purpose of mounting the spring to the suspension and providing an entrance for air.

    3) Blind Nut - Also a permanent part of the bead plate assembly. Provides an alternative mounting system to the stud.

    4) Air Fitting - Usually 1/4 N.P.T. Provides an air entrance to the bellows.

    5) Bead Plate - Crimped onto the bellows at the factory for a more durable design.


    Product Picture

    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet for Auto Parts Trailer
    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet for Auto Parts Trailer
    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet for Auto Parts Trailer
    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet for Auto Parts Trailer
    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet for Auto Parts Trailer
    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet for Auto Parts Trailer
    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet for Auto Parts Trailer
    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet for Auto Parts Trailer
    Triple Convoluted Air Bag Suspension Spring Bellow Gas 1/2NPT Air Inlet for Auto Parts Trailer
