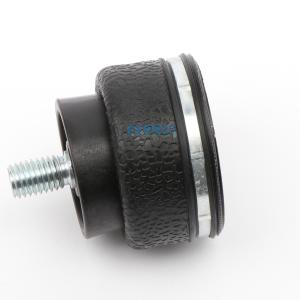

1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle

    Buy cheap 1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle from wholesalers

    Buy cheap 1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle from wholesalers
    • Buy cheap 1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle from wholesalers
    • Buy cheap 1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle from wholesalers
    • Buy cheap 1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle from wholesalers
    • Buy cheap 1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle from wholesalers
    • Buy cheap 1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle from wholesalers
    • Buy cheap 1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle from wholesalers

    1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle

    Ask Lasest Price
    Certification : ISO/Ts16949, ISO9001
    Brand Name : GUOMAT
    Model Number : G3013
    Price : USD29.9-39.9/PC
    Payment Terms : L/C, T/T, Western Union Or Others
    Supply Ability : 1000PCS/Week
    Delivery Time : 3-7 Working Days
    • Product Details
    • Company Profile

    1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle

    1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle

    Cross OEM:

    GUOMAT:G3014

    Goodyear NO.:1S3-013 / 1S3013 / 1S3 013

    Contitech NO.:SZ37-6 / SZ37 6 / SZ376

    Fire stone Air Spring NO.:W02-358-3000 / W023583000 / W02 358 3000


    Quick Details:

    Type:Suspension Spring
    Size:OEM standard
    Spring Type:Gas Filled
    Status: Brand New
    Stock:Yes
    Manufacturer Brand:GUOMAT
    Application:Auto Suspension Parts
    Warranty:12 Months

    Descripition and Specifications:

    G.Weight: 0.6 KG
    PISTON NUMBER: ASC-06-7-017 /
    PISTON NUMBER: ASC067017 /
    PISTON NUMBER: ASC 06 7 017
    Lower Plate OD : 2.40 (in.) / 60.96 MM
    Extended Height : 3.60 (in.) / 91.44 MM
    Bumper Height : 1.50 (in.) / 38.1 MM
    Upper Plate OD : 3.2 (in.) / 81.28 MM
    Lower Plate OD: 2.40 (in.) / 60.96 MM
    Extended Height: 3.60 (in.) / 91.44 MM
    Bumper Height: 1.50 (in.) / 38.1 MM
    Upper Plate OD: 3.2 (in.) / 81.28 MM
    Air Spring Type: Sleeve
    PartType2: Air Spring Sleeve
    STATUS: A
    NUM_CODE: 800001

    Detailed parameters:

    Vibration isolation - dynamic characteristic values
    Design height H: recommended 2.37 inch
    Pressure p [psi]406080100120Vol.V [in.³]
    Force (Load) [lbf]2313274395536779
    Spring rate [lbf/in]1742413123784429
    Natural frequency [Hz]2.82.72.72.62.69

    Pneumatic application - static characteristic values
    Force F [lbf]
    Pressure p [psi]406080100120Vol.V [in.³]
    Height H [inch] 3.002.23.144.85.712
    Height H [inch] 2.502.73.64.65.66.59.8
    Height H [inch] 2.003.14.15.16.27.37.3
    Height H [inch] 1.503.44.55.66.77.94.9

    Application of 1S3-013 air spring :

    This air spring was originally designed to be used in the Harley-Davidson shock, the current amount is relatively large and Halley motor. But there are many customers used in the relatively small force on the small machinery and equipment, there are precision instruments. Many customers respond to its shock absorption effect is very good.We designed G3014 this airbag is completely replaceable the original one 1S3-013.

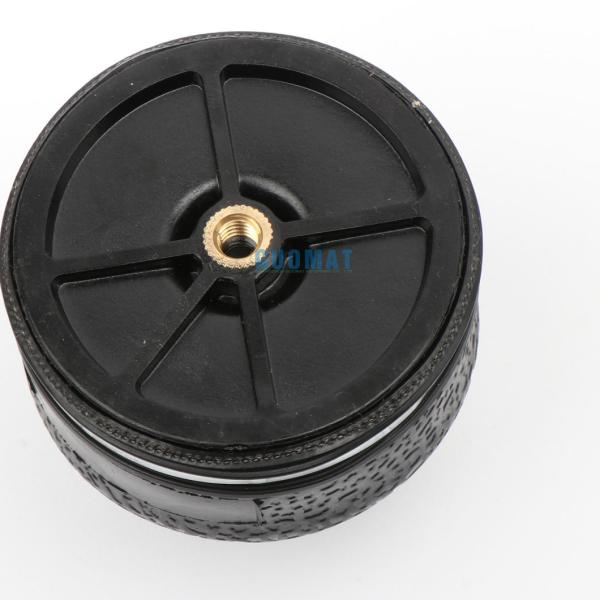

    1s3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat for Harley Motorcycle
    1s3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat for Harley Motorcycle
    1s3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat for Harley Motorcycle

    Quality 1S3-013 Goodyear Air Spring Super Cushion Mini Lobe Sleeve Seat For Harley Motorcycle for sale
