Detailed Product Description
| Material: | Aluminium Alloy Brass | Working Medium: | Air/oxygen/rare Gases |
|---|
| Max Pressure: | 0.4Mpa | Pressure Range: | 0~0.35Mpa |
|---|
| Temperature Range: | -5~60℃ | Port Size: | G1/4″ |
|---|
| Net Weight: | 0.4kg/pcs | Voltage: | DC12V,DC24V |
|---|
| Class Of Insulation: | F Class | Cv: | 0.89 |
|---|

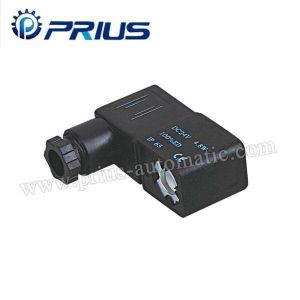

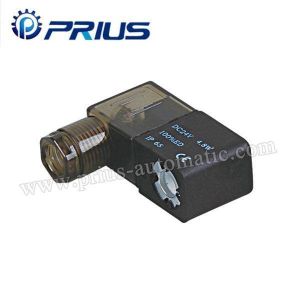

200C Coils DC / AC power for 200 / 300 / 400 series Solenoid Valve
Junction Box wire lead
Quick Detail:
* electromagnetic induction coil for pneumatic solenoid valve
application
* working voltage DC12V,DC24V,AC110V,AC220V
* power consumption AC:4VA~30VA,DC:3W~48W
* thermoplastic type,Thermosetting type,Non Encapsulation type
* electricity connecting type wire flying lead type or socket type
* electricity connecting standard DIN43650A DIN43650B
* insulation F class,H class
* various model for different application
* stable and long service cycle
* CE certification approved
Specifiction
| Model | 100C | | 200C |
| | | | |
| Power | DC:2.8W AC:2.8VA | | AC: 5.5VA DC: 4.8W |
| Operation | 100% ED | |
| Working Voltage | AC:24V, 110V, 220V, 380V | DC:12V, 24V |
| Ambient Temperature | -30℃～70℃ | |
| Protect Class | IP65 | |
| Insulation Class | F Class | |
| Wiring Form | Lead Wire Type, Connector Type |
